24×36 Equipment Shed Kit

🔍
24x36 equipment shed kit
24x36 equipment shed kit
24x36 equipment shed kit
24x36 equipment shed kit
  1. 24x36 equipment shed kit
  2. 24x36 equipment shed kit
  3. 24x36 equipment shed kit
  4. 24x36 equipment shed kit

$9,902.00

SKU14885
Building TypeEquipment Shed
Building Length36
Building Width24
Building Height14
Roof Pitch4/12
Square Feet864
Truss Type4/12 Pitch 4' o/c
Truss Spacing:4ft on center
Post Type:3-ply GluLam & 6x6 Treated
Post Footings:16" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:None
Entry Doors:None
Windows:None
Roofing:Everlast Lynx 28 Ga
Siding:Everlast Lynx 28 Ga
Vapor Barrier:No
Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.

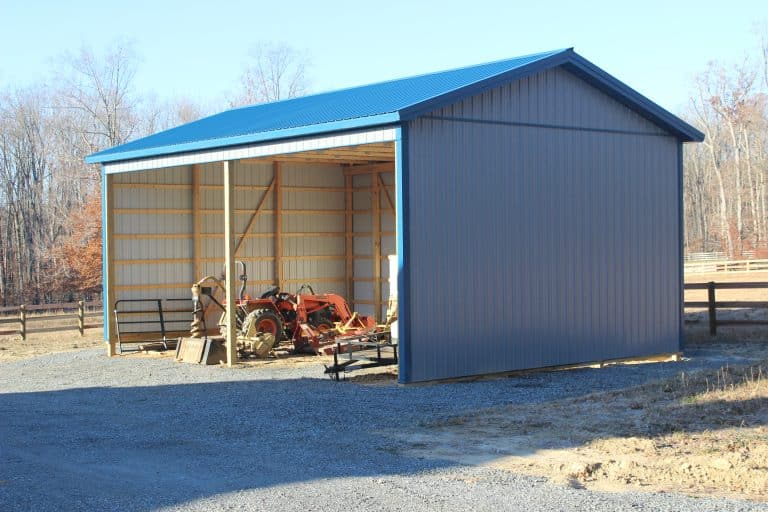

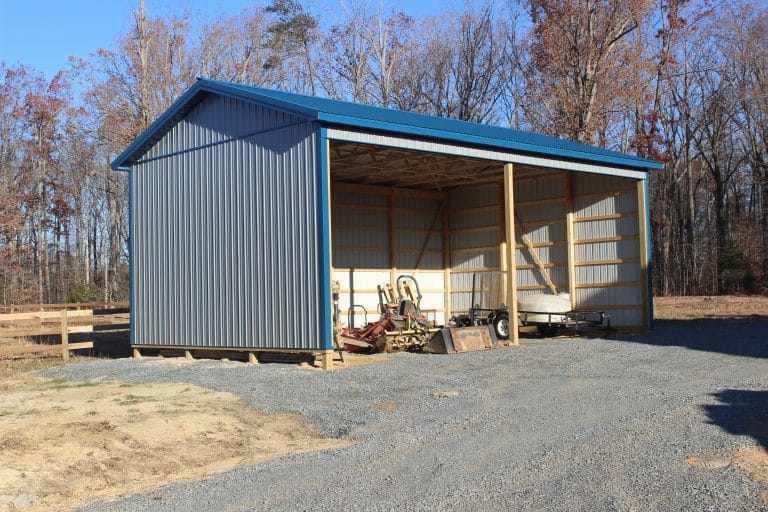

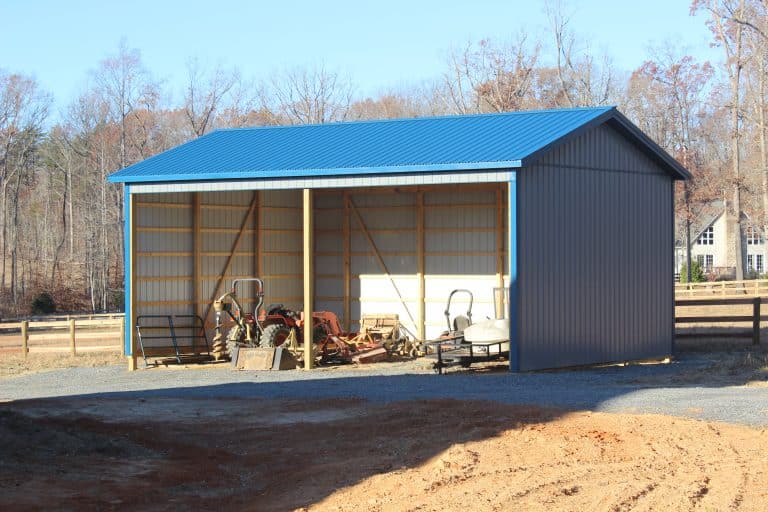

  • The finished building(s) shown in the photo gallery may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $2,970.60

SKU: 14885 Category:

Kit Description:

Material for 24’x36’x14’ pole barn with one open eave: 3-ply 2×6 glu-lam posts 8’ o/c (4-ply 2×6 full-treated posts 18’ on center on open eave). (1) 5×12 precast concrete footer block & (1) 80 lb bag sakrete per post (16” footer blocks @ open eave). 2-ply 2×10 SYP headers (2 ply 14” LVL @ 18’ eave openings). Pre-fabricated trusses with 4/12 roof pitch. 35-5-5 loading, 48″ on center. 12” overhangs on eaves and gables with vented metal soffit. 2×8 treated skirtboard. 2×4 purlins & girts 24” o/c. Everlast 28 Ga. LYNX Series metal roofing & siding. Vented closures under ridge cap. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. 4” GRK structural screws for headers.
