Kit Description:

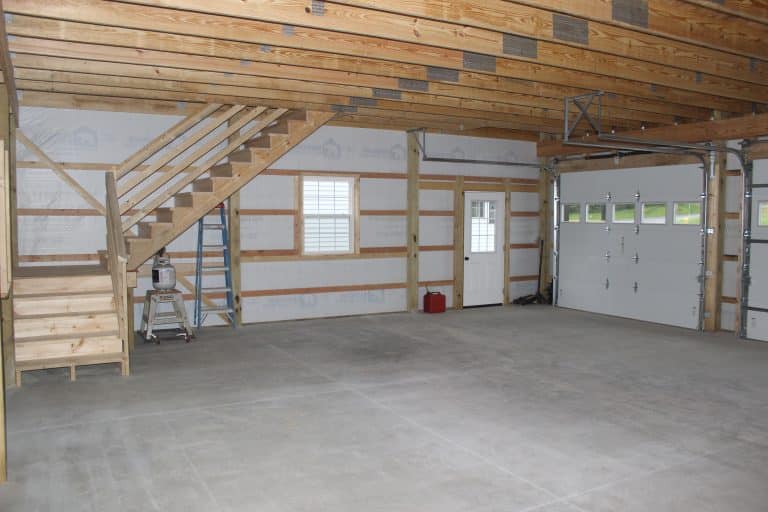

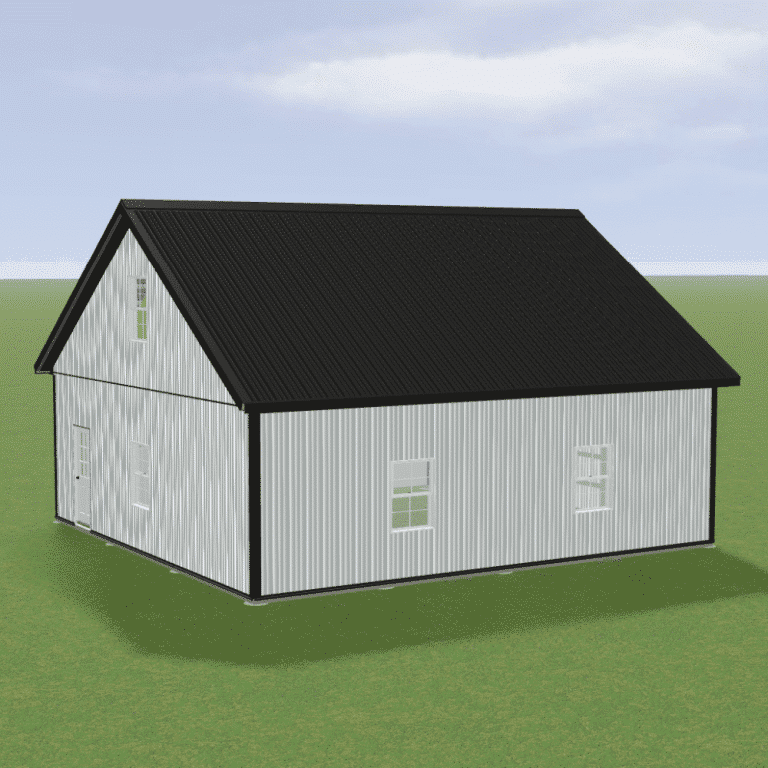

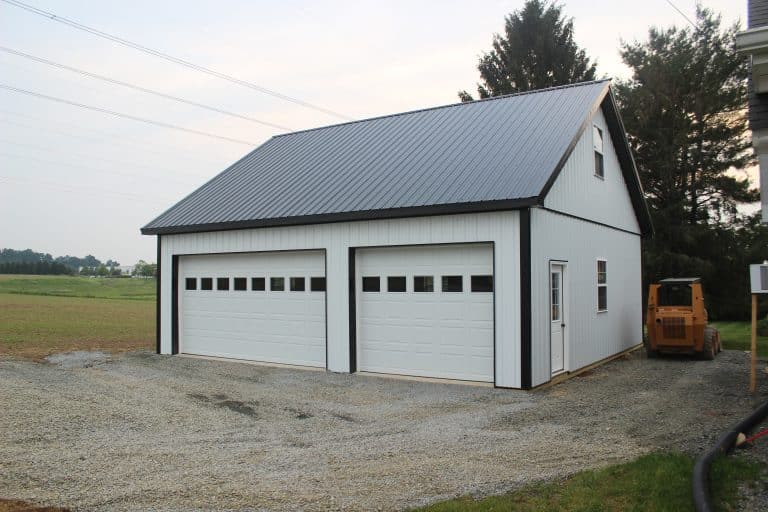

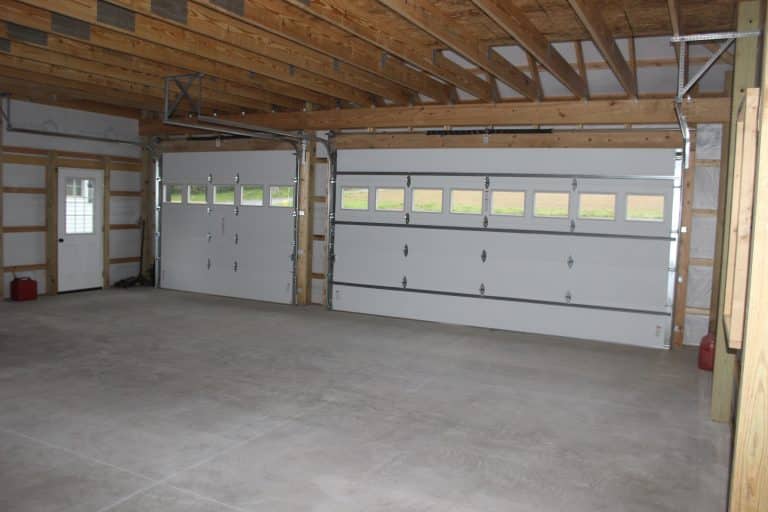

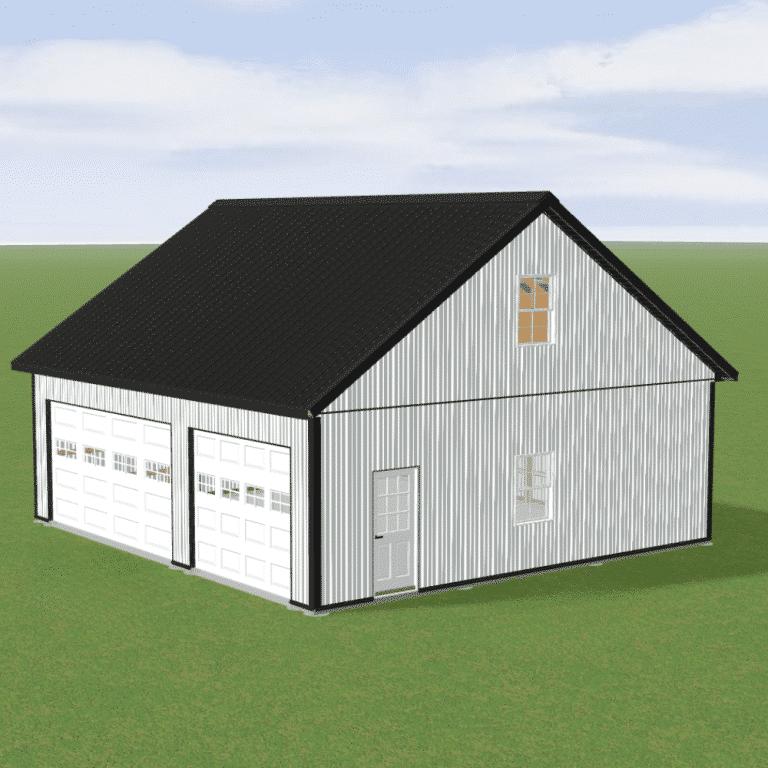

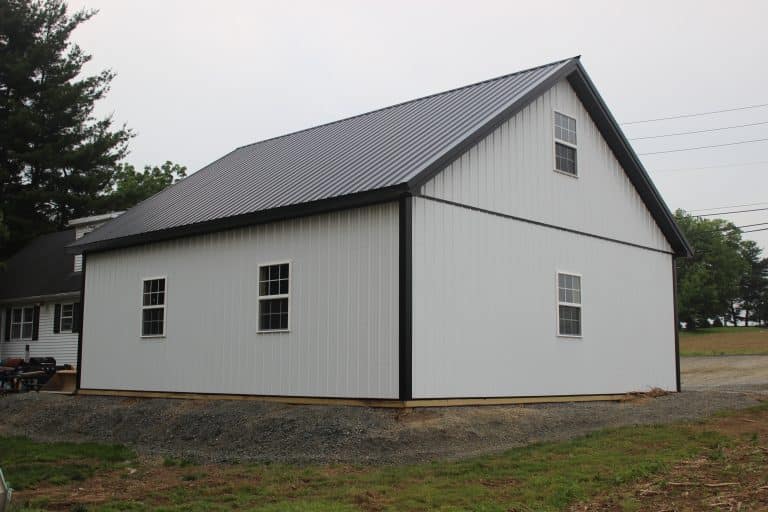

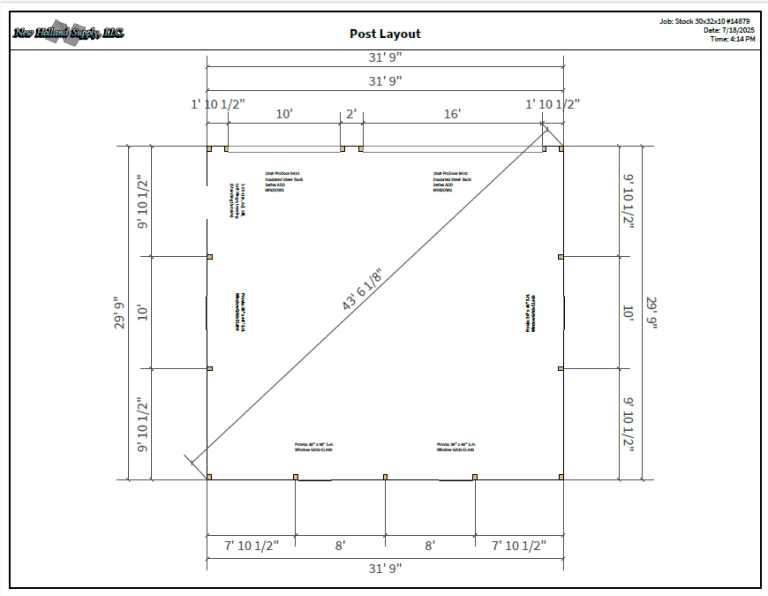

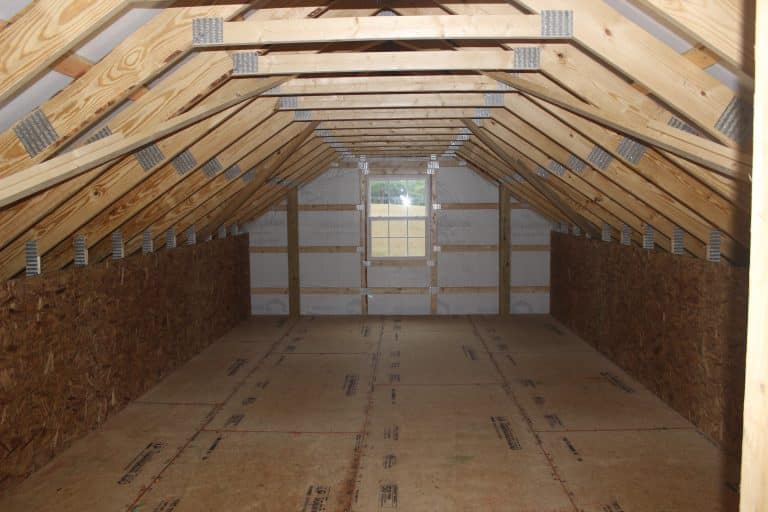

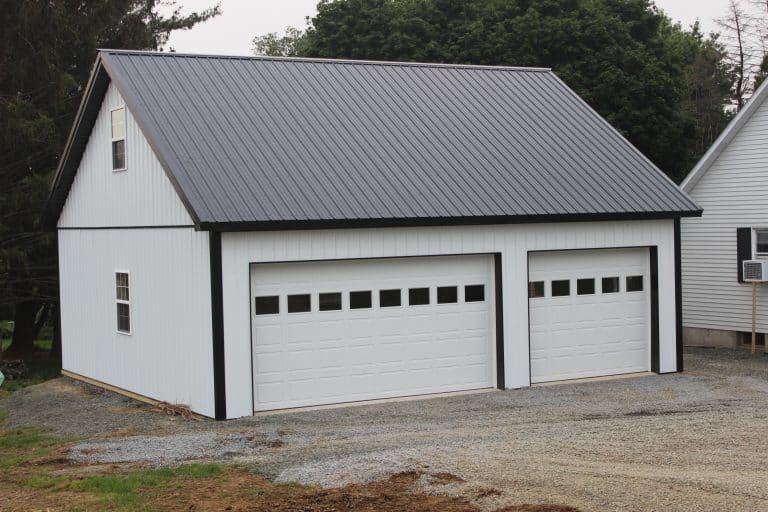

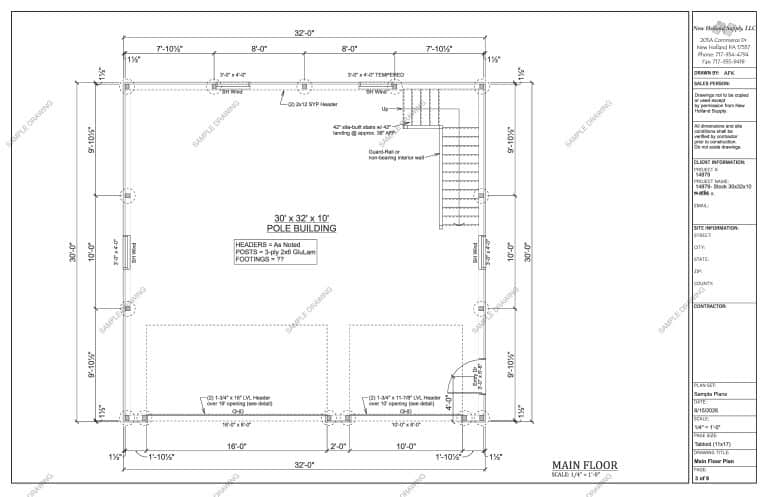

Material for 30’x32’x10’ pole barn: 3-ply 2×6 glu-lam posts. (1) 5×16 precast concrete footer block & (1) 80 lb. bag Sakrete per post. 2-ply 2×12 SYP headers. Prefabricated trusses with 8/12 roof pitch. 40-5-5 loading, 24″ on center. 14′-6″ x 7′-6″ attic space with 3/4″ OSB flooring, 7/16″ OSB 4′ high on sides, site built stairs. 12” overhangs on eaves & gables with vented metal soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” o/c. Everlast 28 Ga. LYNX Series metal roofing and siding. R-9 Therma-Guard vapor barrier on roof, Housewrap on sides. Vented closures under ridge cap, foam closures at eave. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (1) 16’x8’ and (1) 10’x8’ ProDoor 6410 overhead door, R-10 insulated, metal back, raised panel wood grain, white, torsion springs, standard track, weather stripping, steel angle, slide lock, no windows. (1) 3.0 x 6.8 9-lite, fiberglass entry door with black, keyed entry door knob. (6) 36″ x 48″ white, vinyl, single hung windows with flat grids. 4” GRK structural screws for headers color matched screws for roofing and siding.
