30×40 Shed with OLT in Nokesville, VA

Original Job #
11053
Dimensions
30x40x12
Similar Kit For Sale
Building Type
Shed
Location
Nokesville, VA, USA
Square Feet
1200
3D Builder
Garage Doors
2
Entry Doors
2

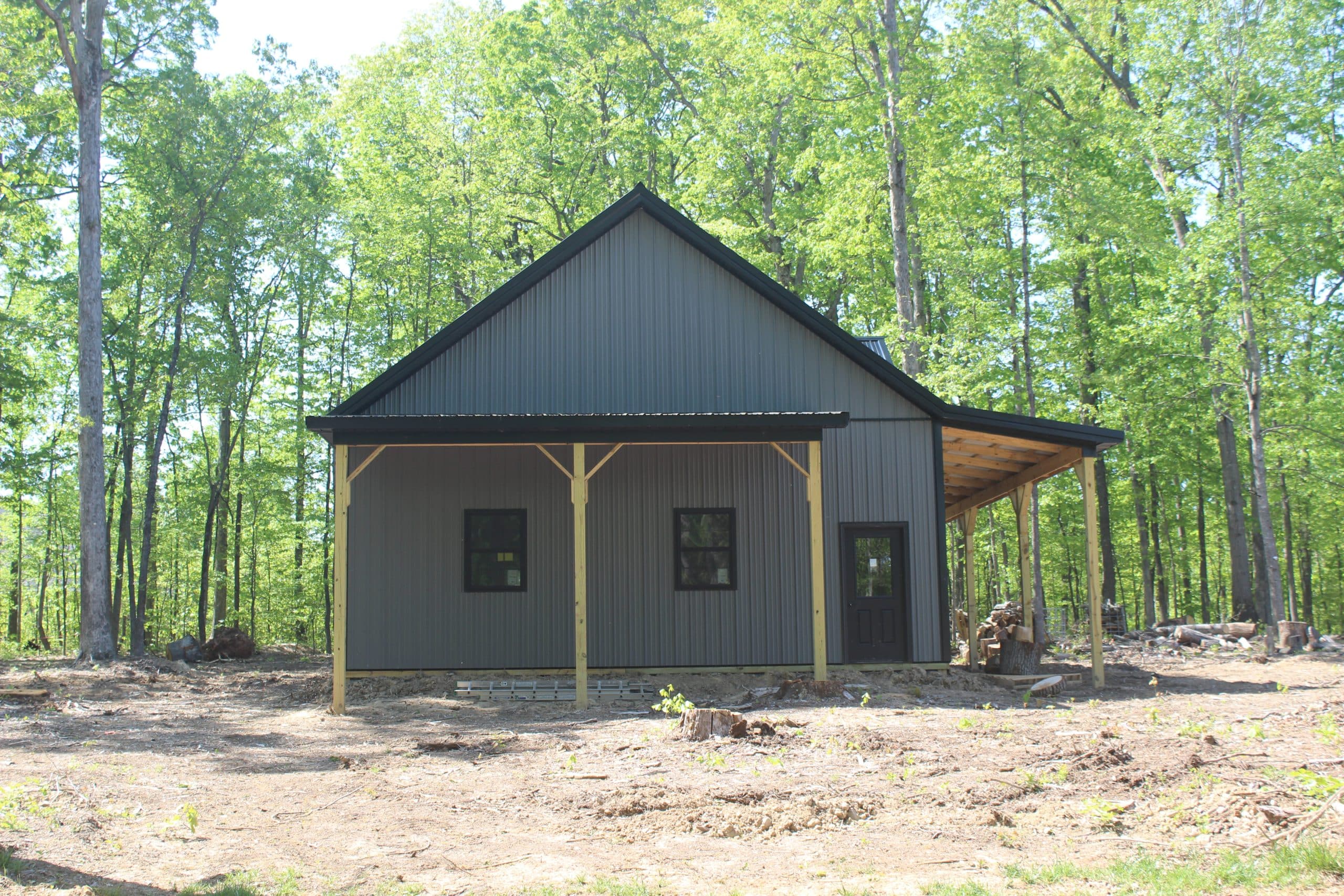

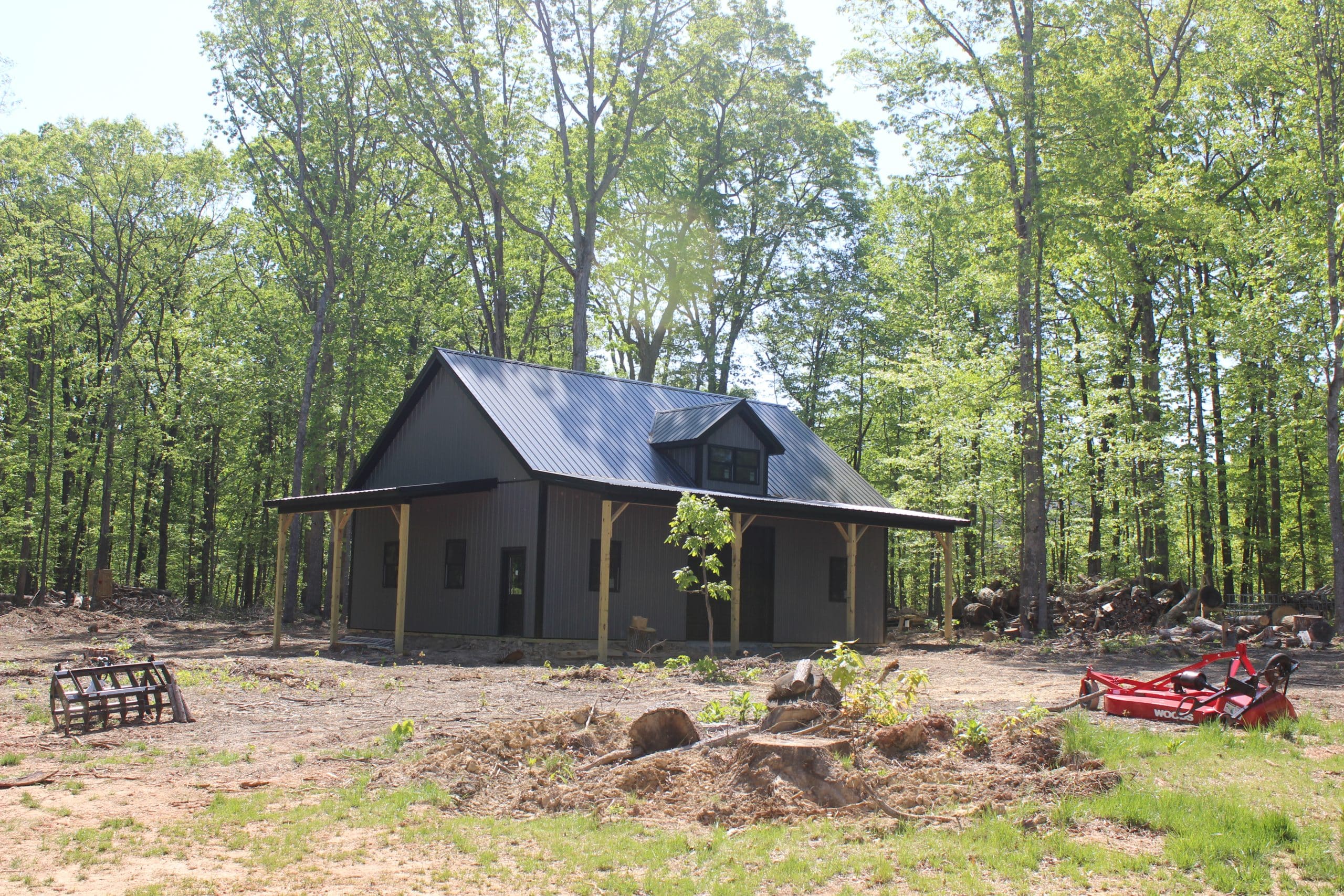

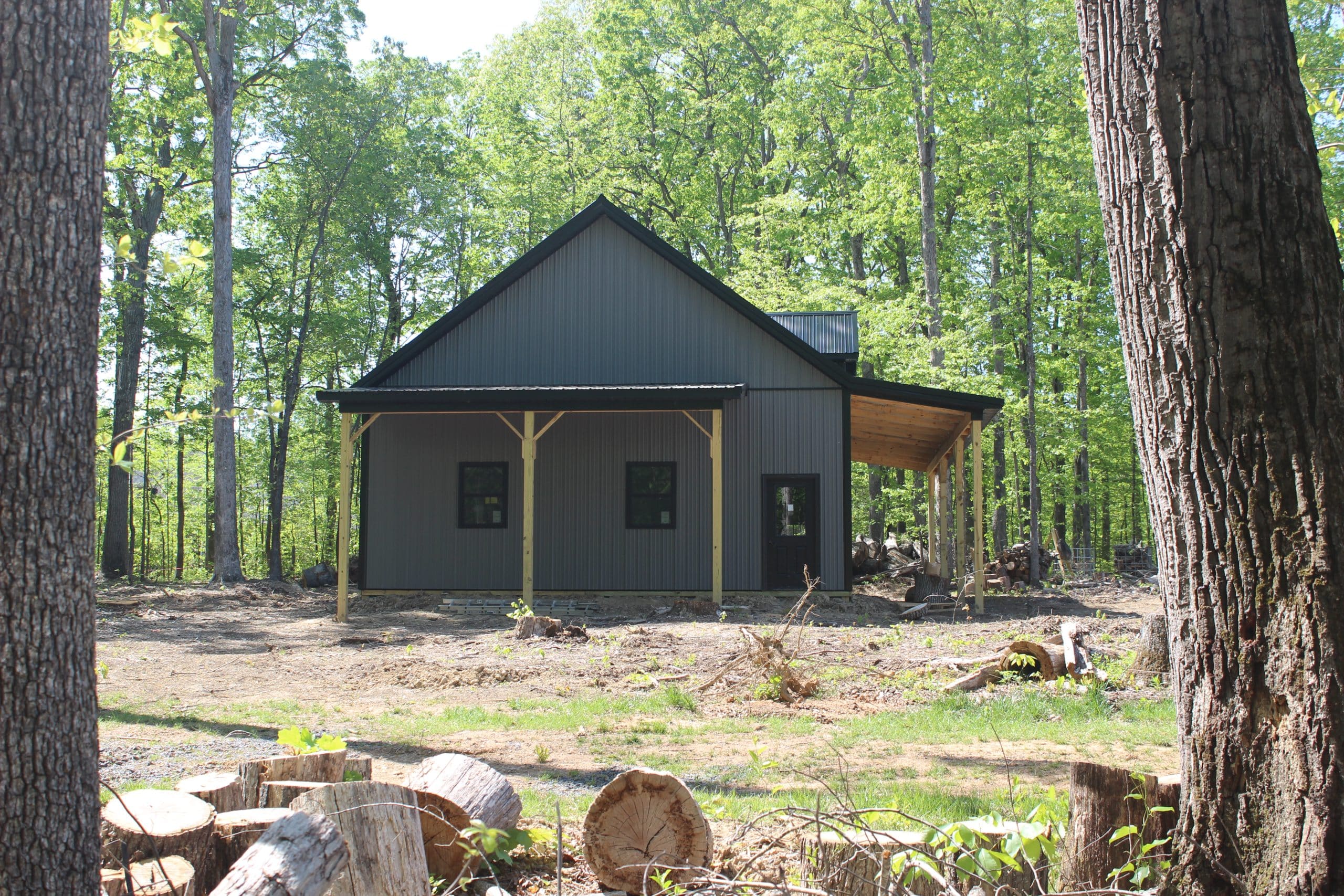

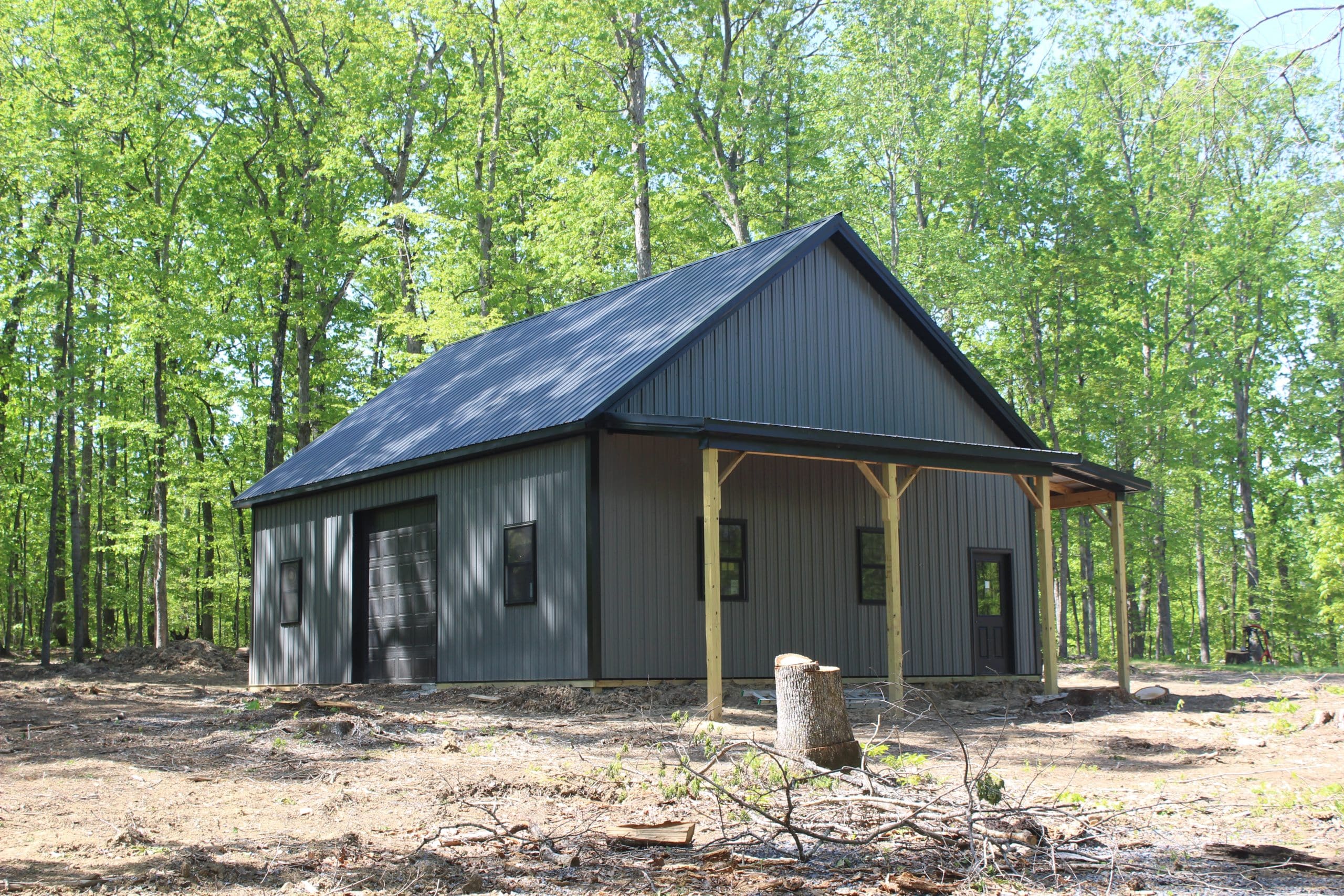

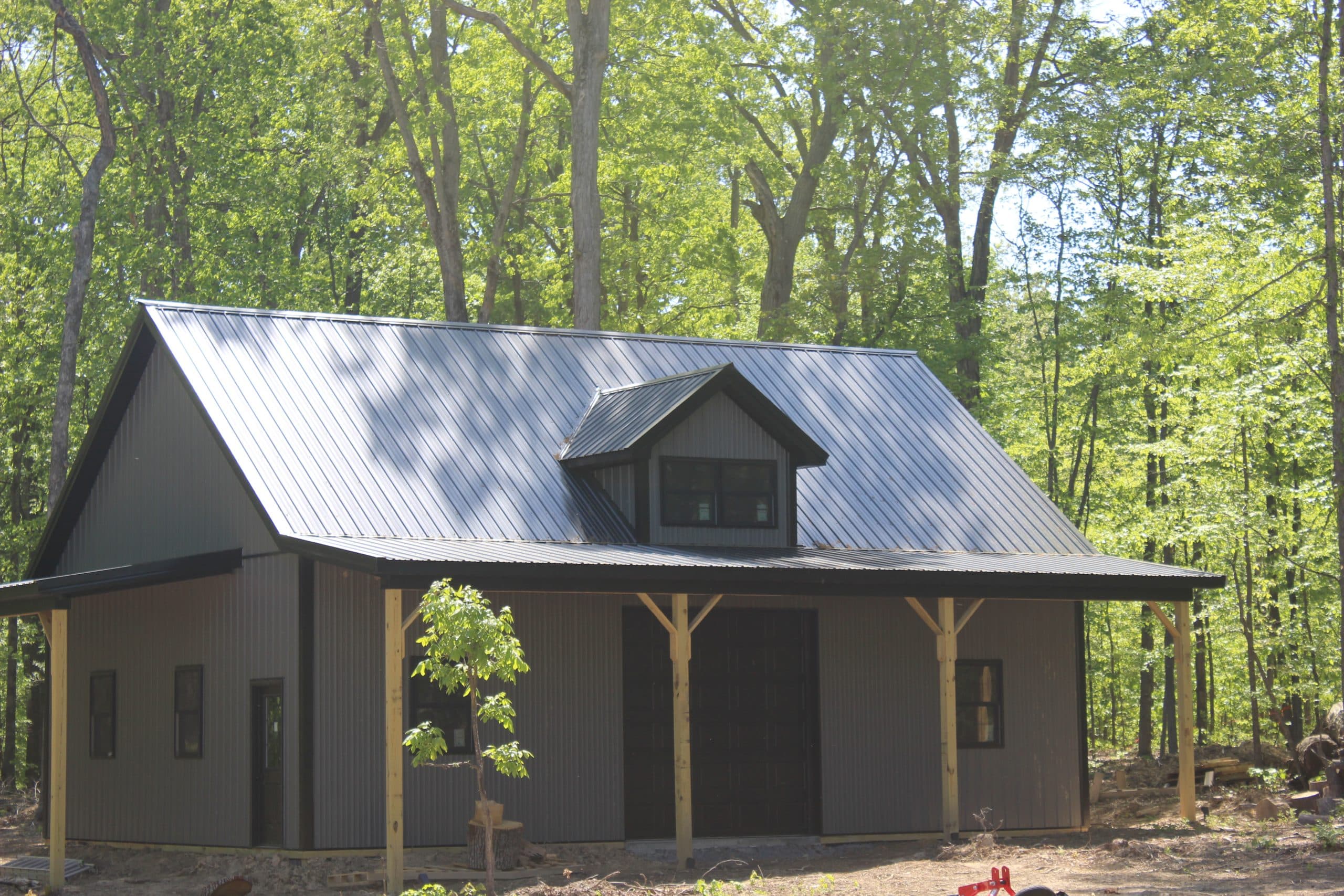

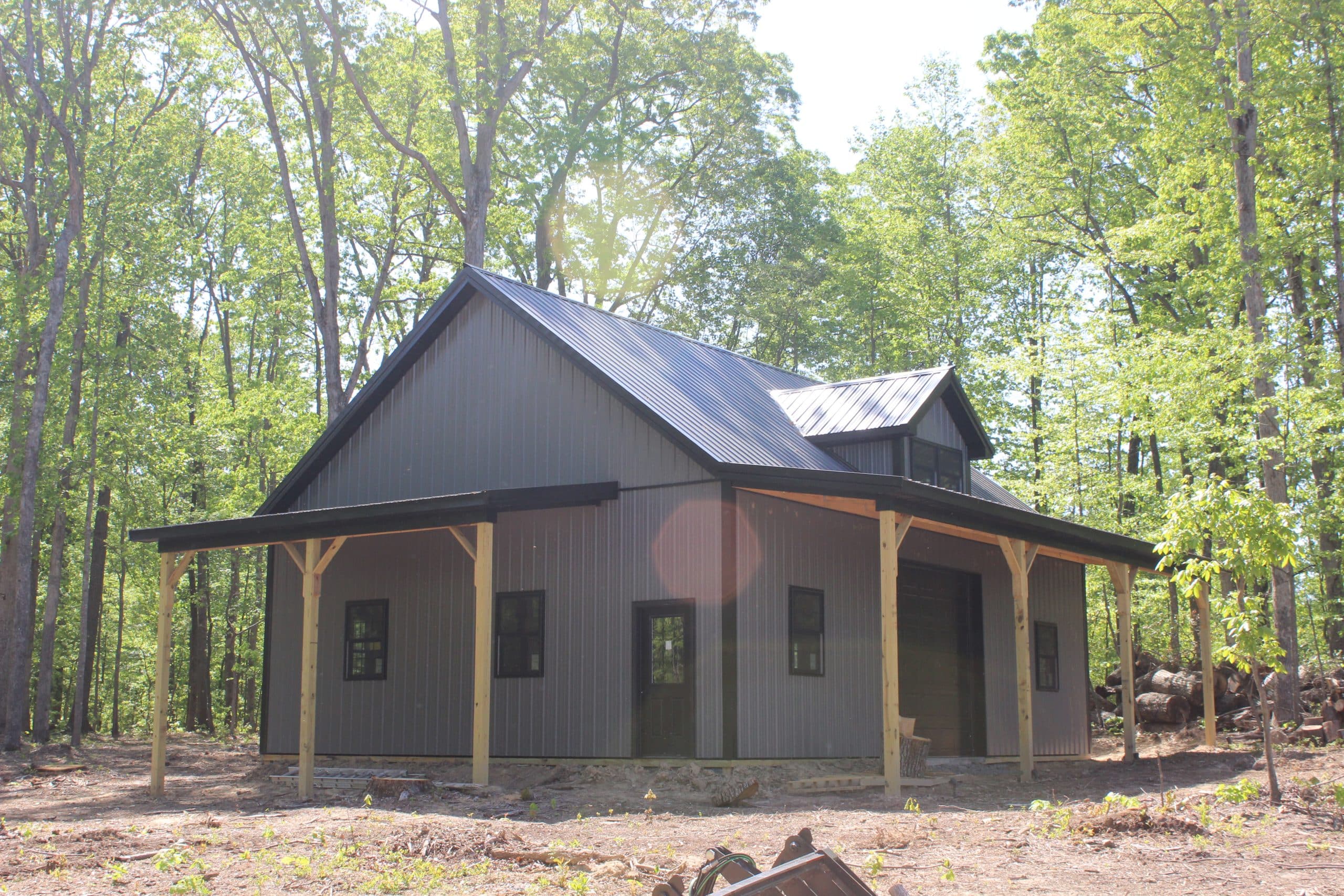

This 30x40x12' Shed with OLT was built with 3-ply 2x6 glulam posts 8’ on/center, precast concrete footer block with Sakrete, 2-ply MSR truss bearers, prefabricated trusses with 4/12 roof pitch, 12” overhangs on eaves and gables with vented metal soffit. Everlast 28 Ga. metal roof & siding with Therma Guard R-9 vapor barrier on roof and vented closures under ridge cap, foam closure strips at eaves. It also includes two 10x10 insulated wood grain overhead doors, two 9-lite fiberglass entry doors, and eight white single hung windows.

Other Projects in our Portfolio

40×80 Open Pavilion in Finksburg, MD

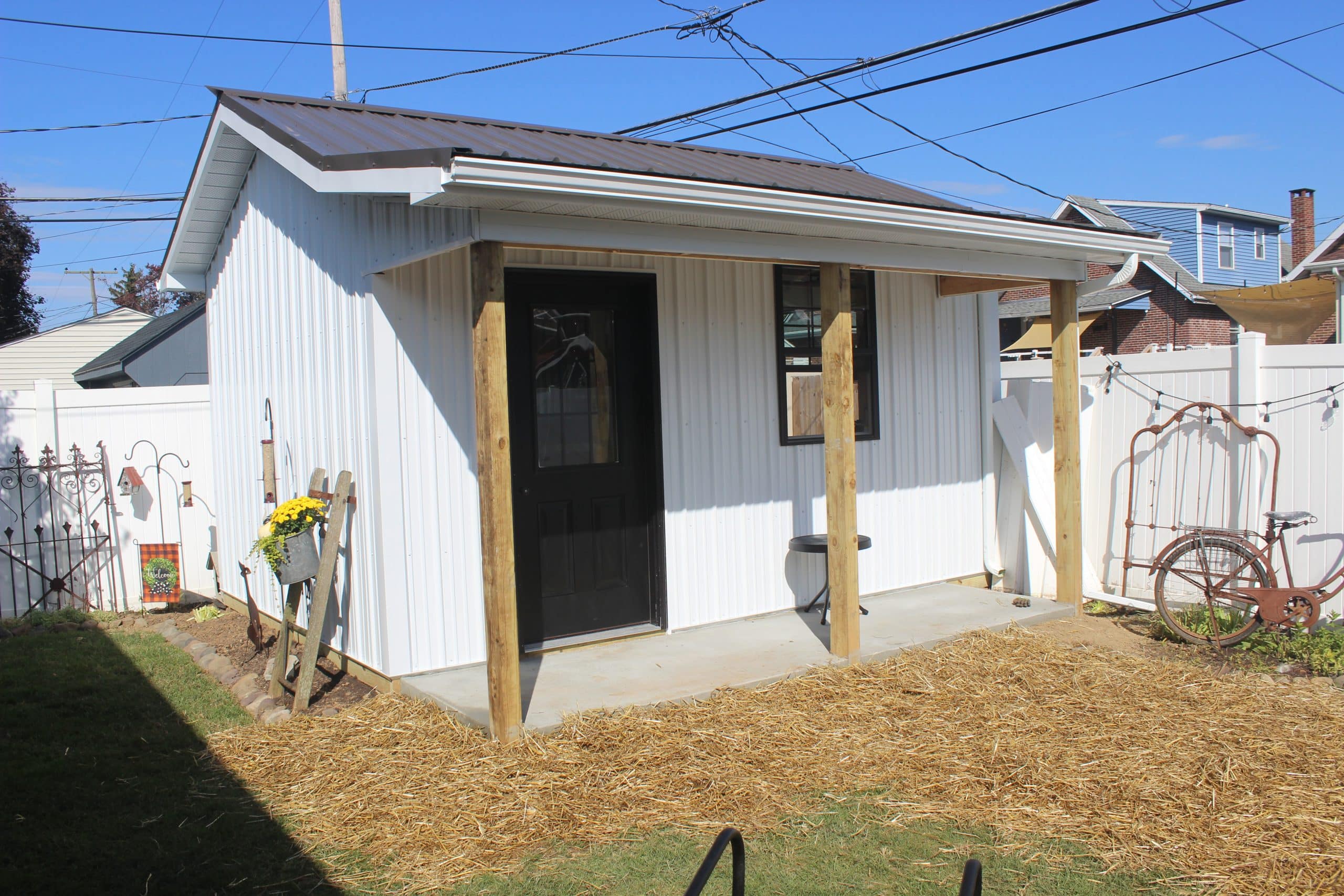

12×16 Garage in Reading, PA
