Original Job #
13133
Dimensions
30x30x10
Building Type
Shed
Location
Little Meadows, PA, USA
Square Feet
900
3D Builder

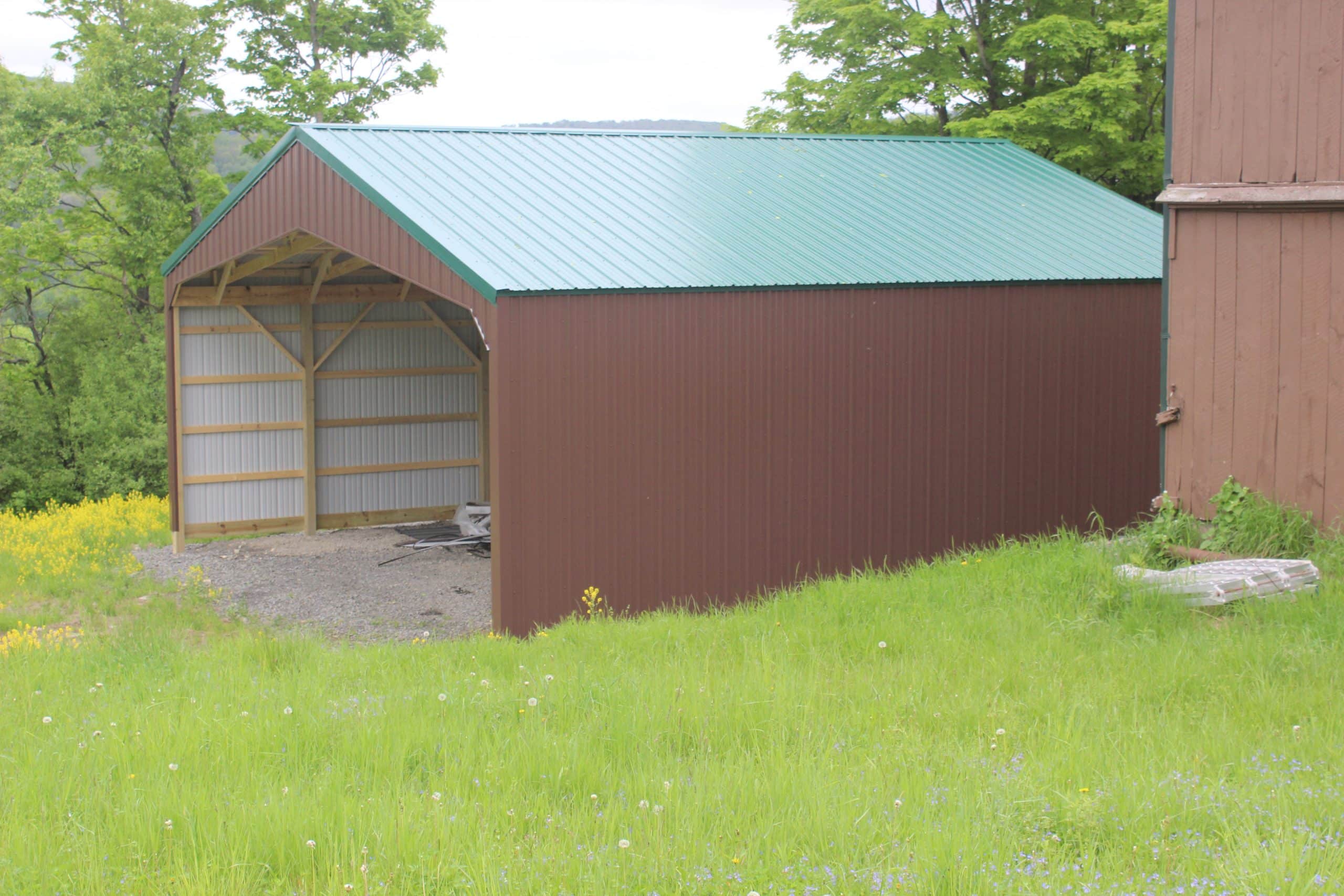

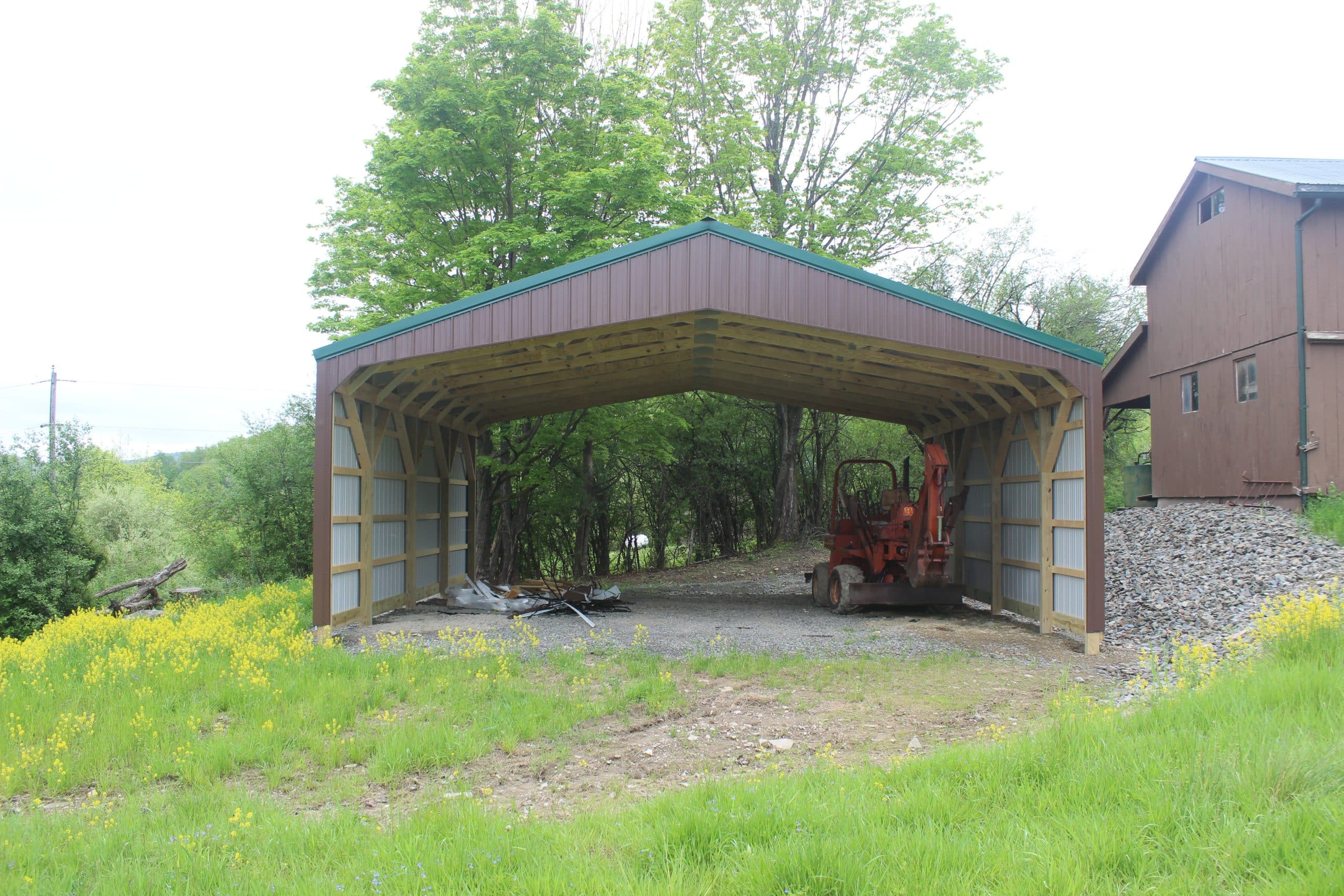

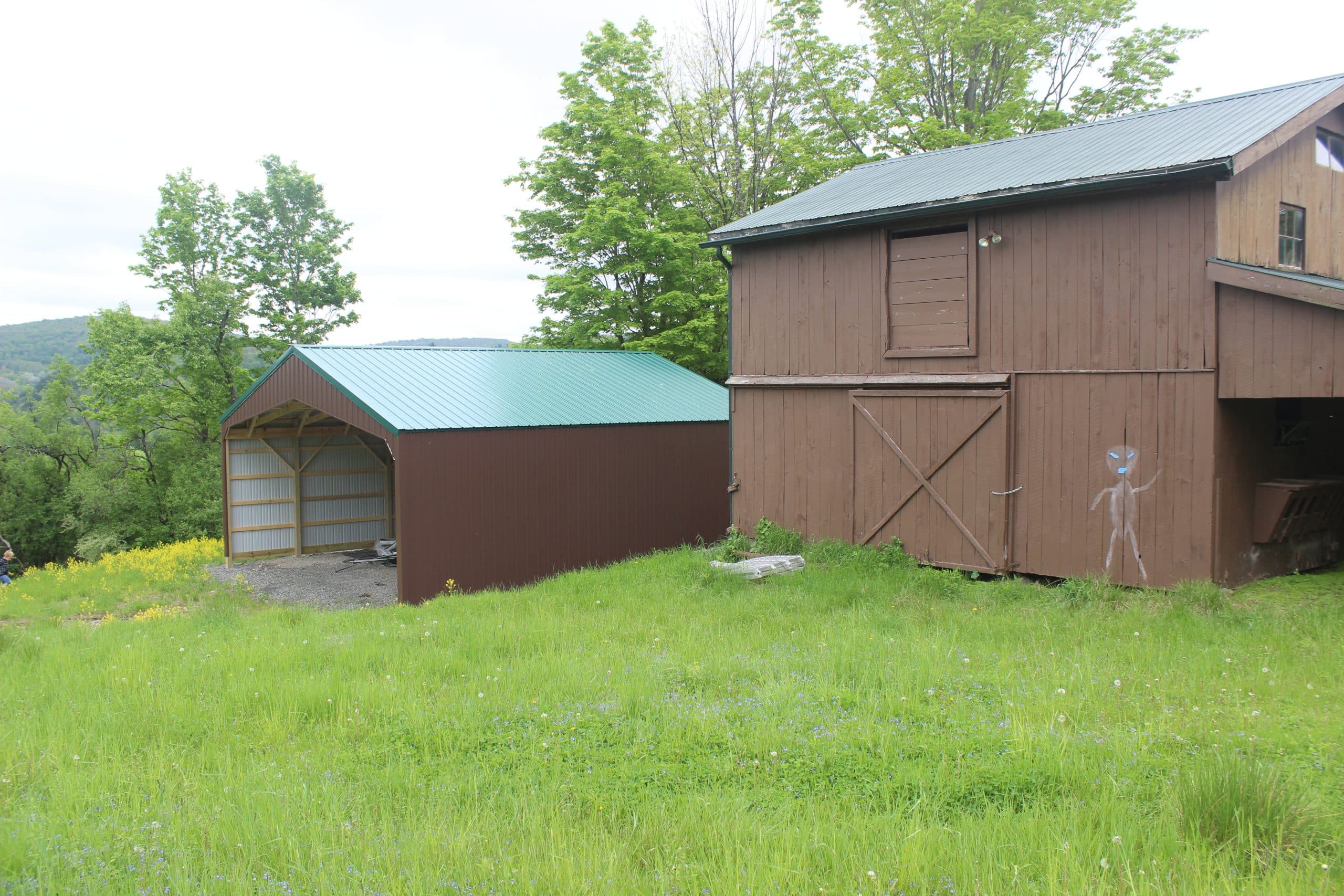

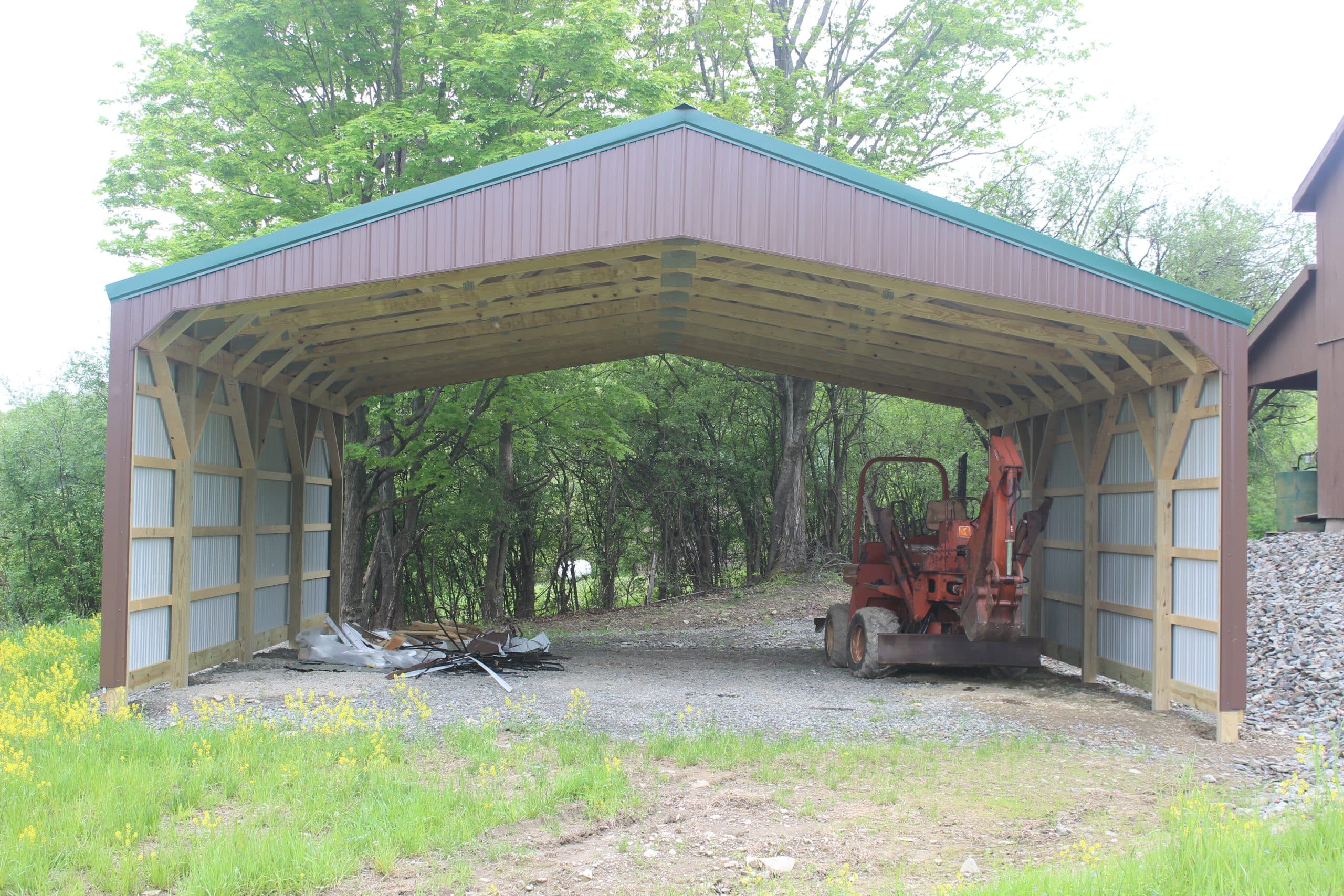

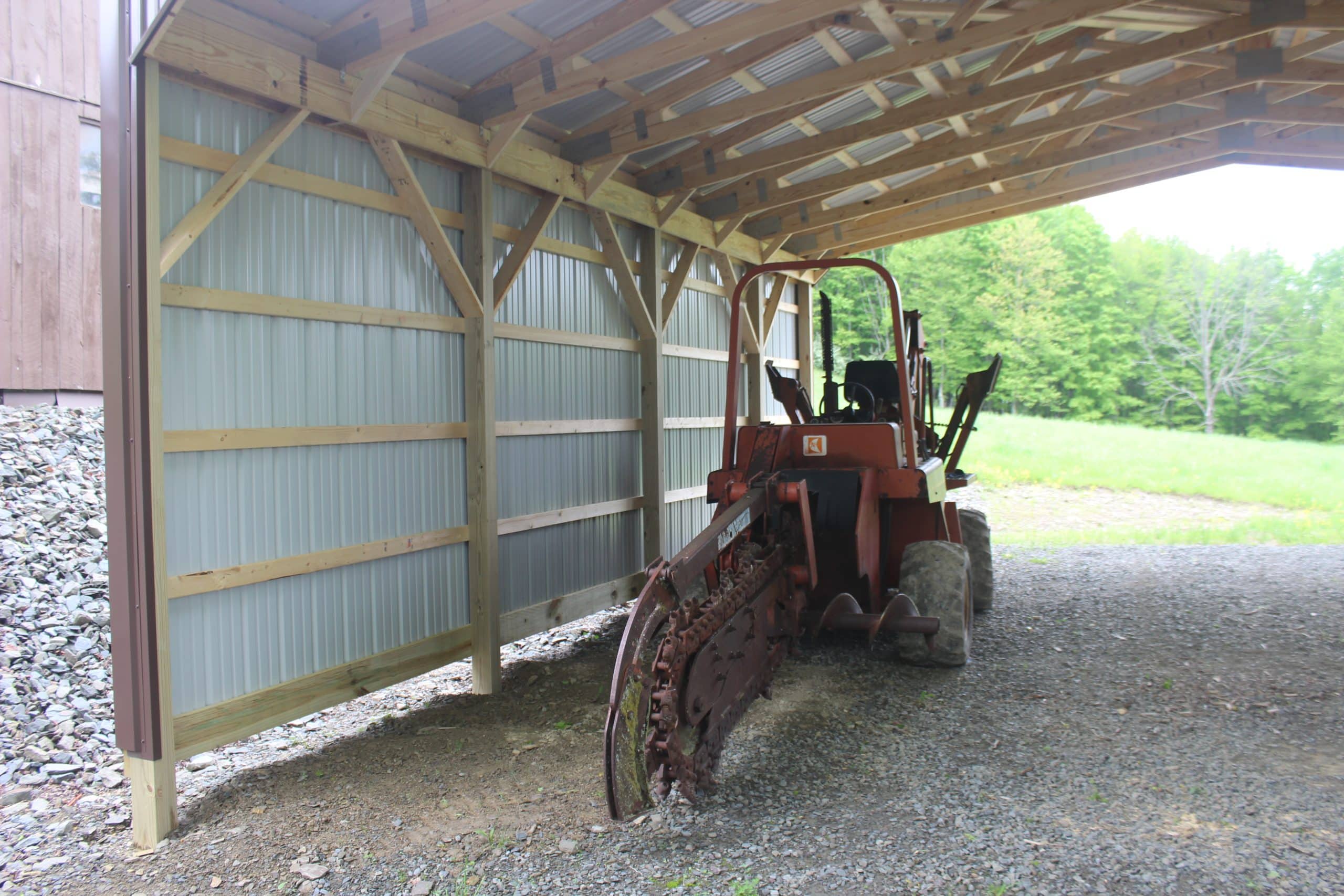

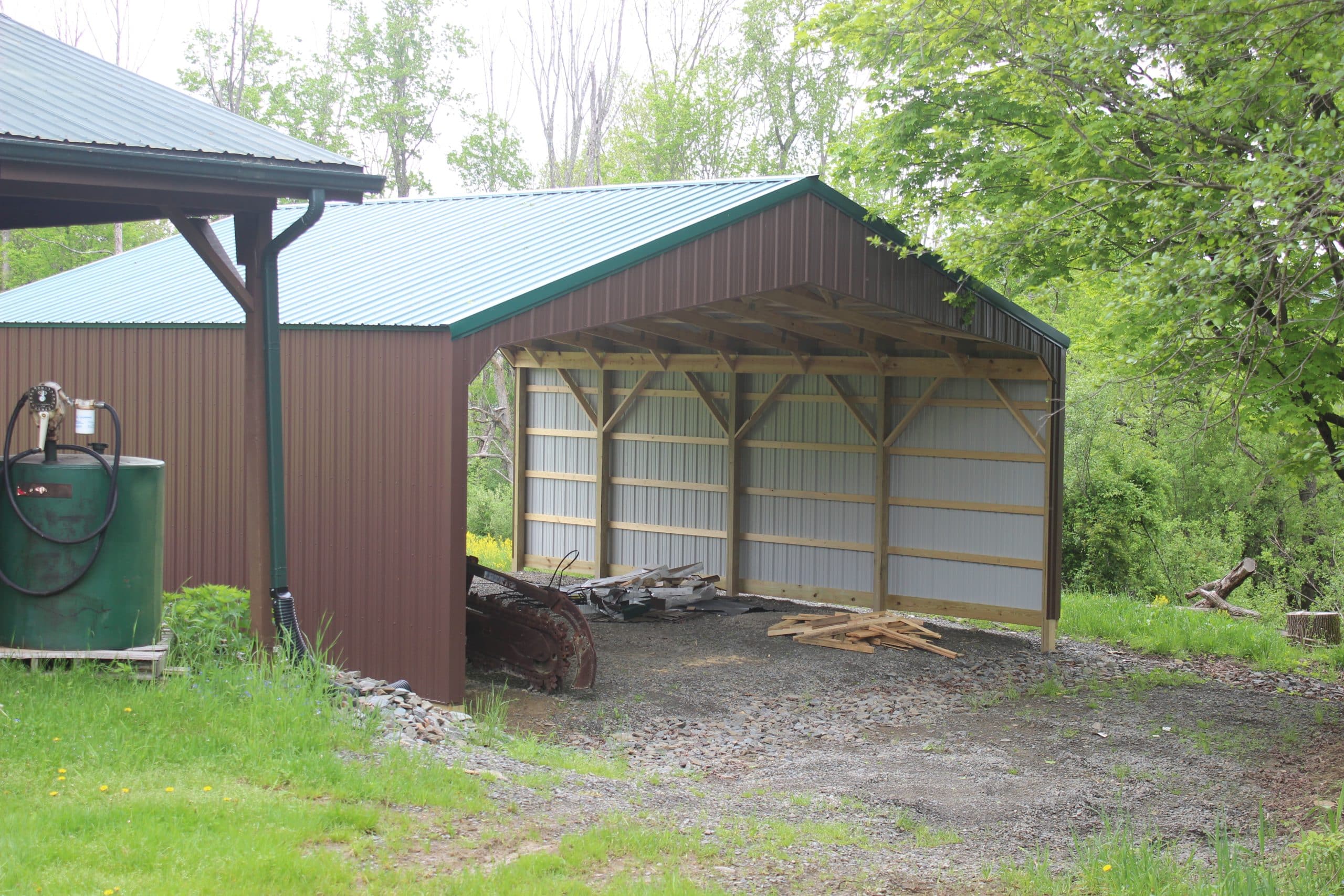

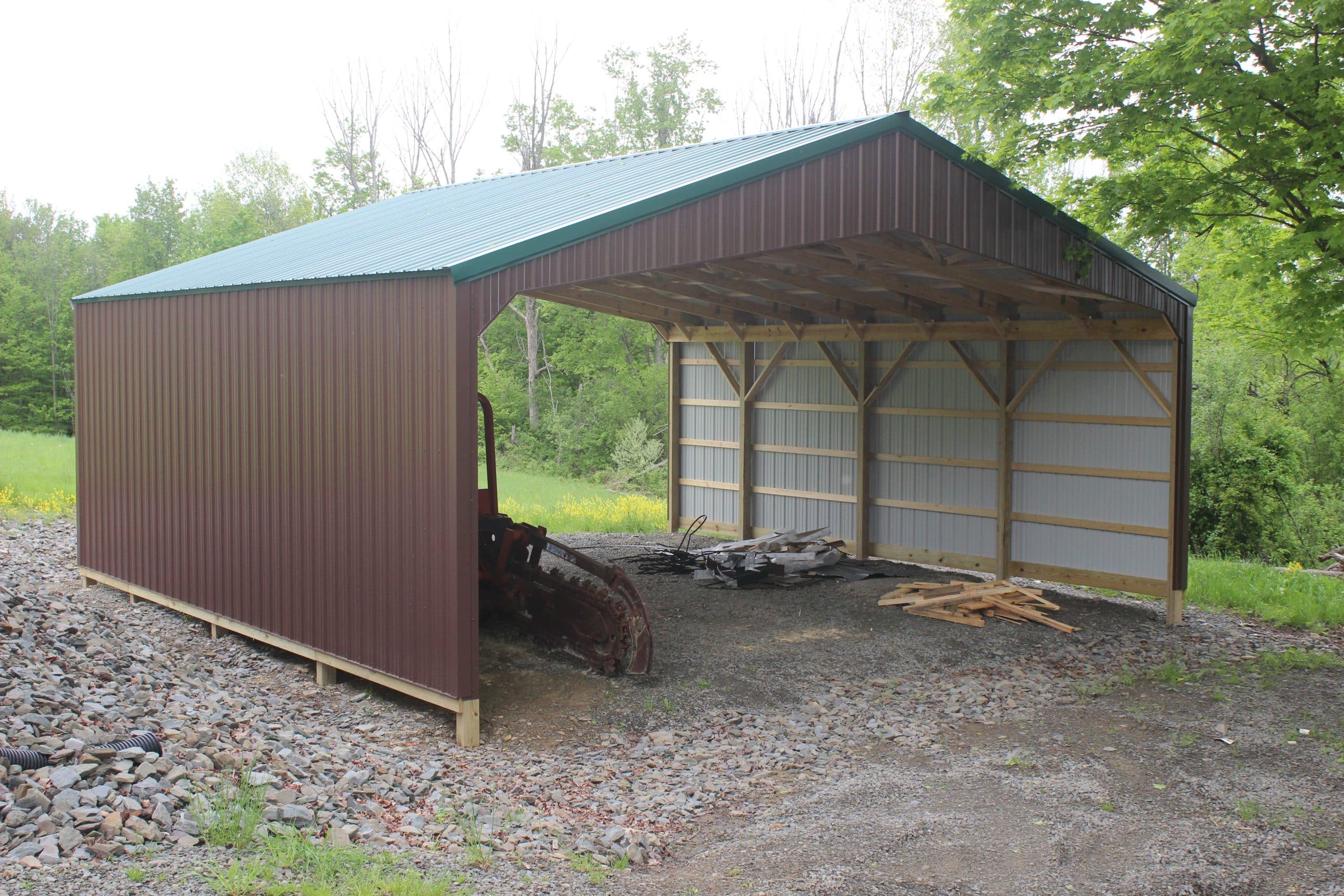

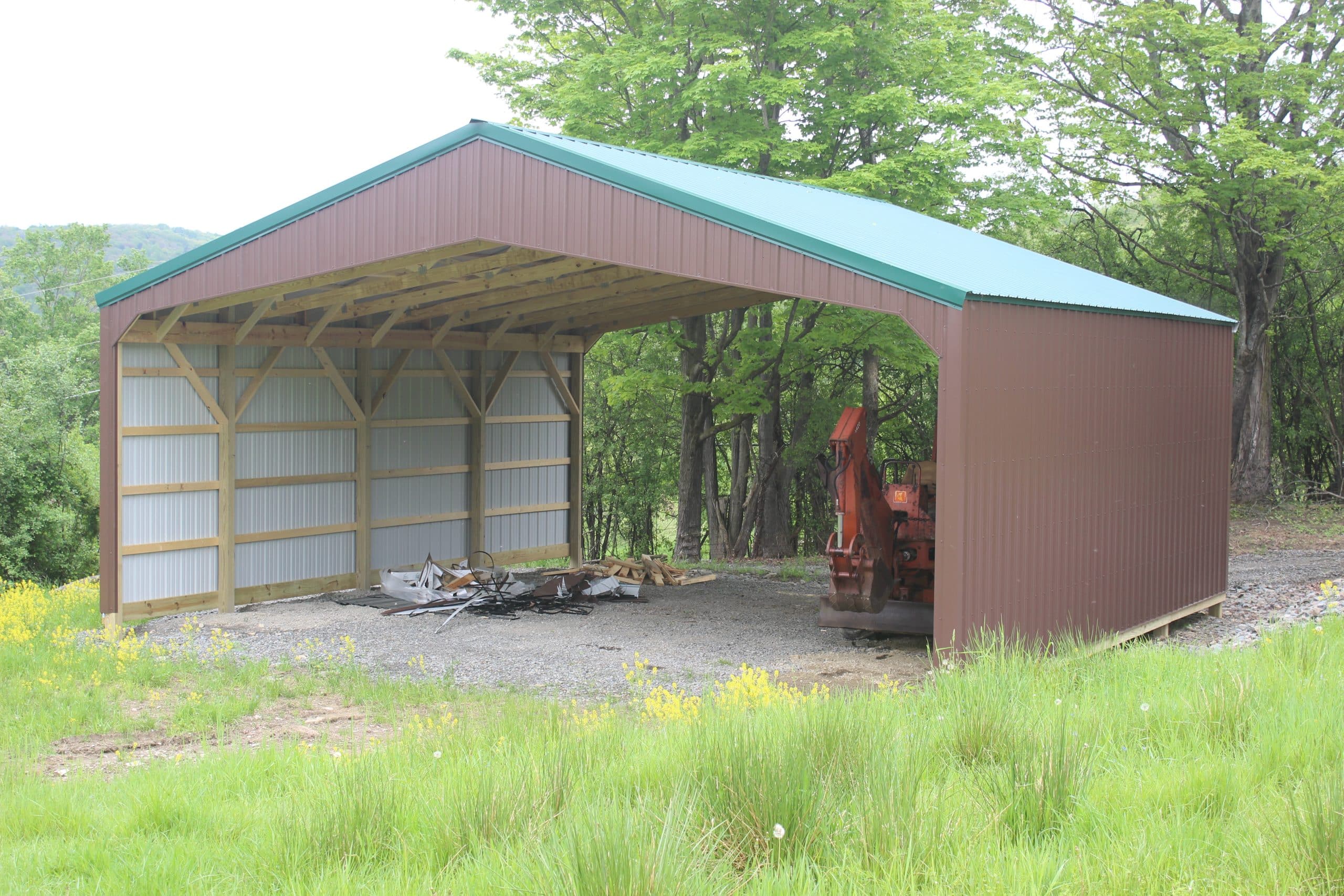

This 30x30x10' Shed with open Gables was built with 3-ply 2x6 Glulam posts 8’ on/center, 5x16 precast concrete footer block with Sakrete per post, 2-ply 2x10 MSR truss bearers, and Prefabricated Scissor trusses with 4/12-2/12 roof pitch and no overhangs. Everlast 28 Ga. LYNX Series metal roof & siding with Therma Guard R-9 vapor barrier on roof and vented closures under ridge cap, foam closure strips at eaves.
