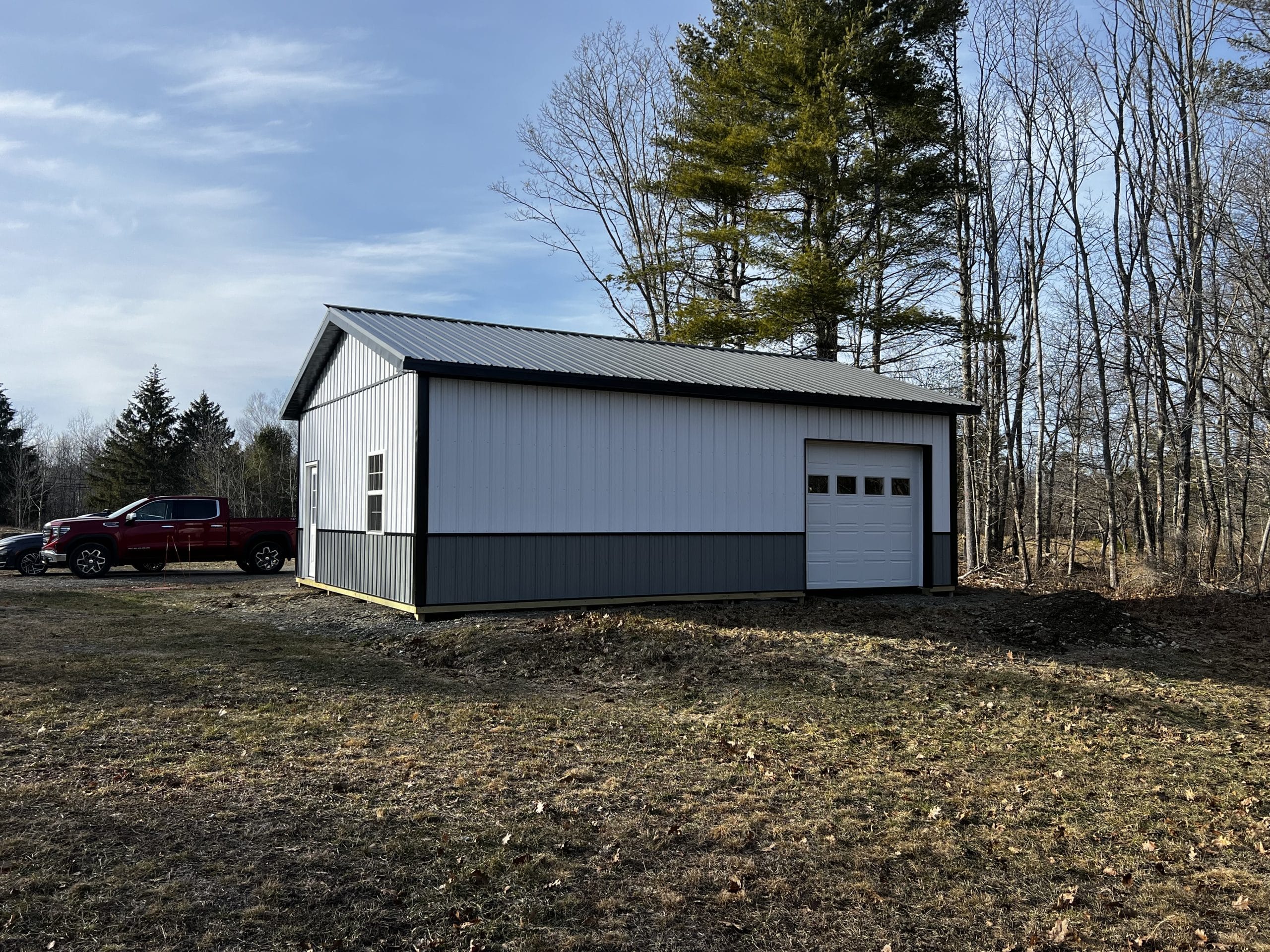

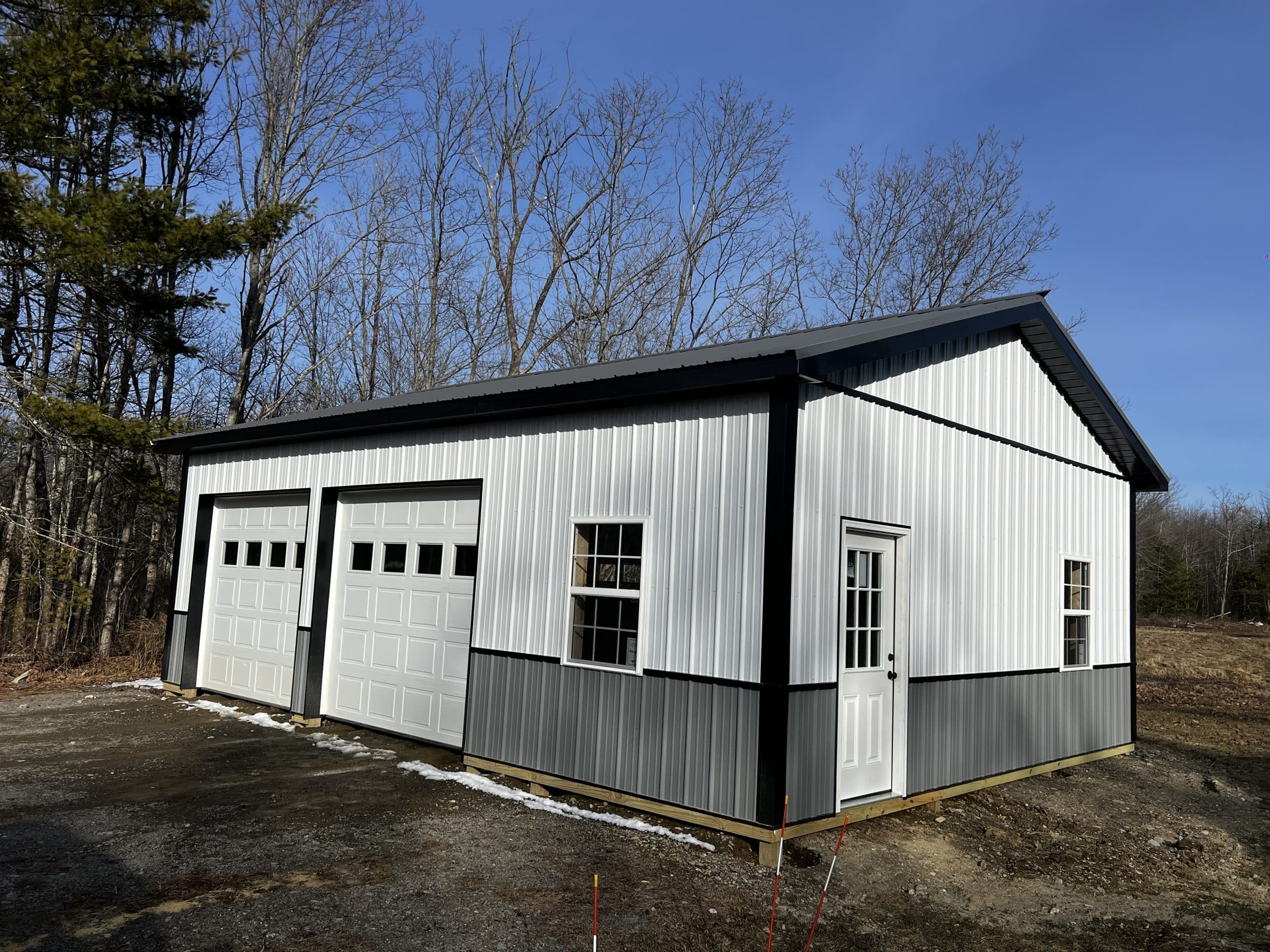

24x32x10 Pole barn, Unity ME

Treated 4x6 posts 8’ o/c. • (1) 5x16 precast concrete footer block & (1) 80 lb bag sakrete per post. • 2-ply 2x12 SYP headers. • Pre-fabricated trusses with 4/12 roof pitch. 70-5-5 loading, 48" on center. • 12” overhangs on eaves and gables with vented aluminum soffit and painted steel fascia. • 2x8 treated skirtboard. • 2x4 purlins & girts 24” on/center. • Everlast 28 Ga. OMNI Series metal roofing (CHARCOAL). • Everlast 28 Ga. OMNI Series metal siding (WHITE). • 3’ wainscot on all sides (SLATE). • Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables
