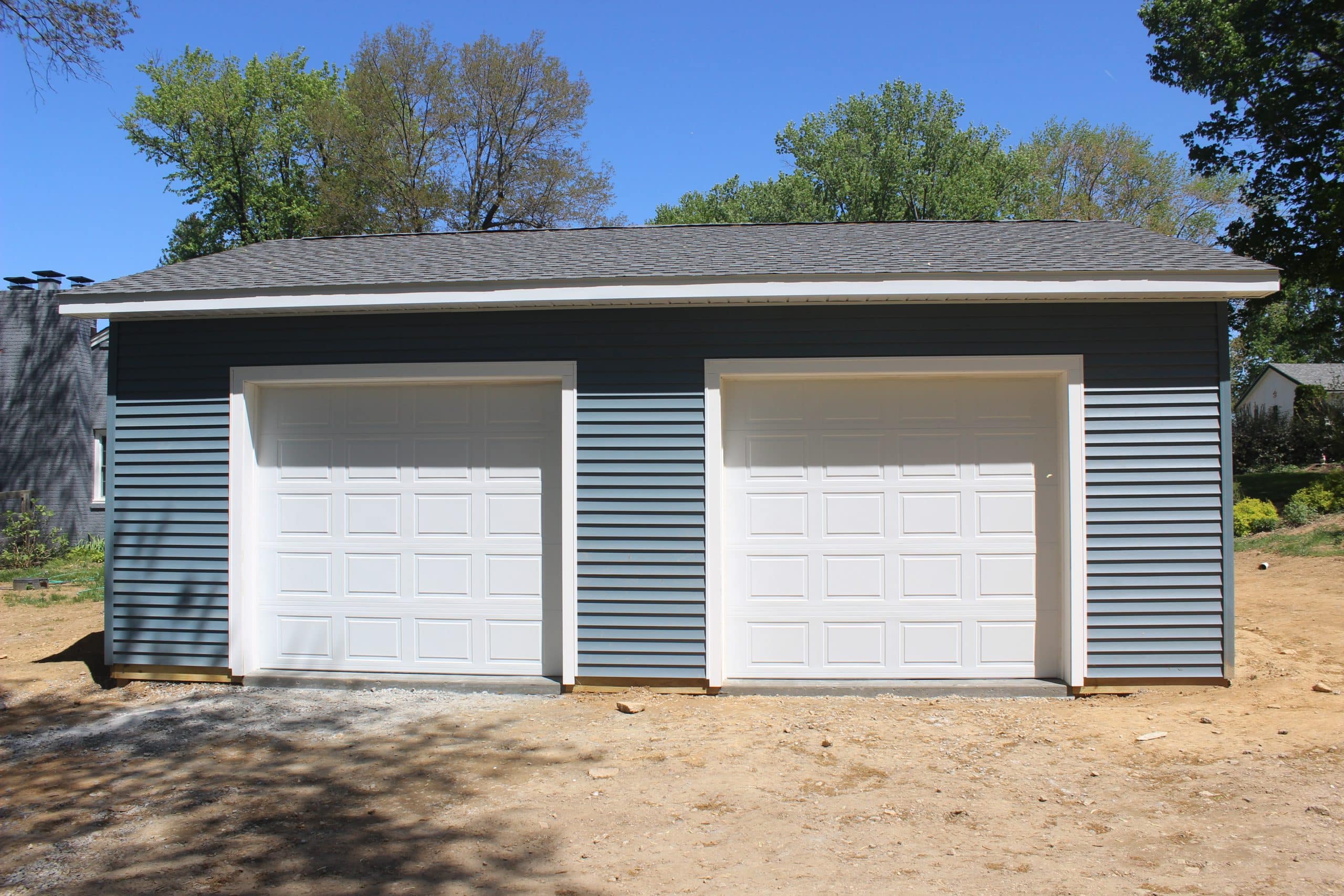

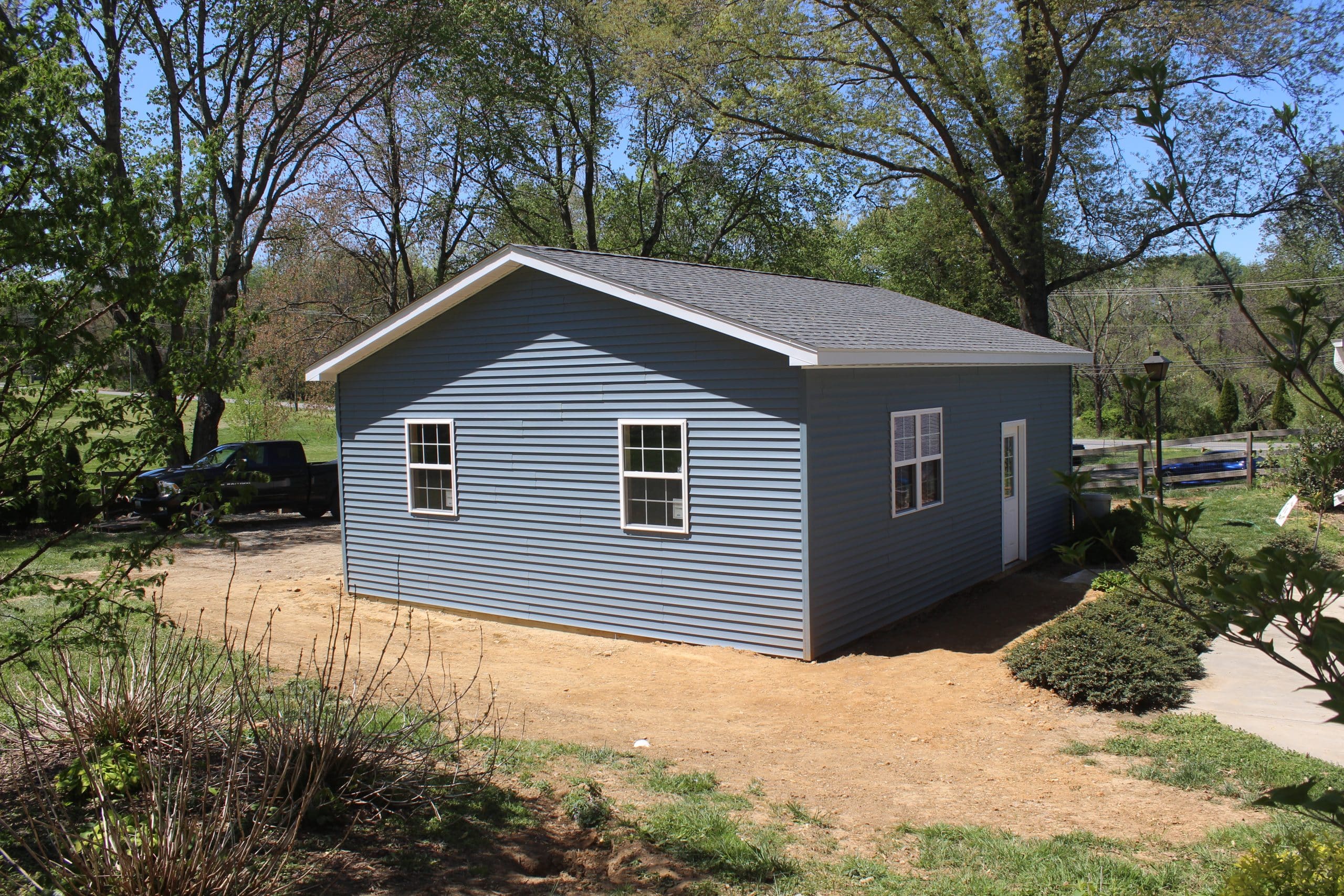

24x30x10 Garage, Woodstock, MD

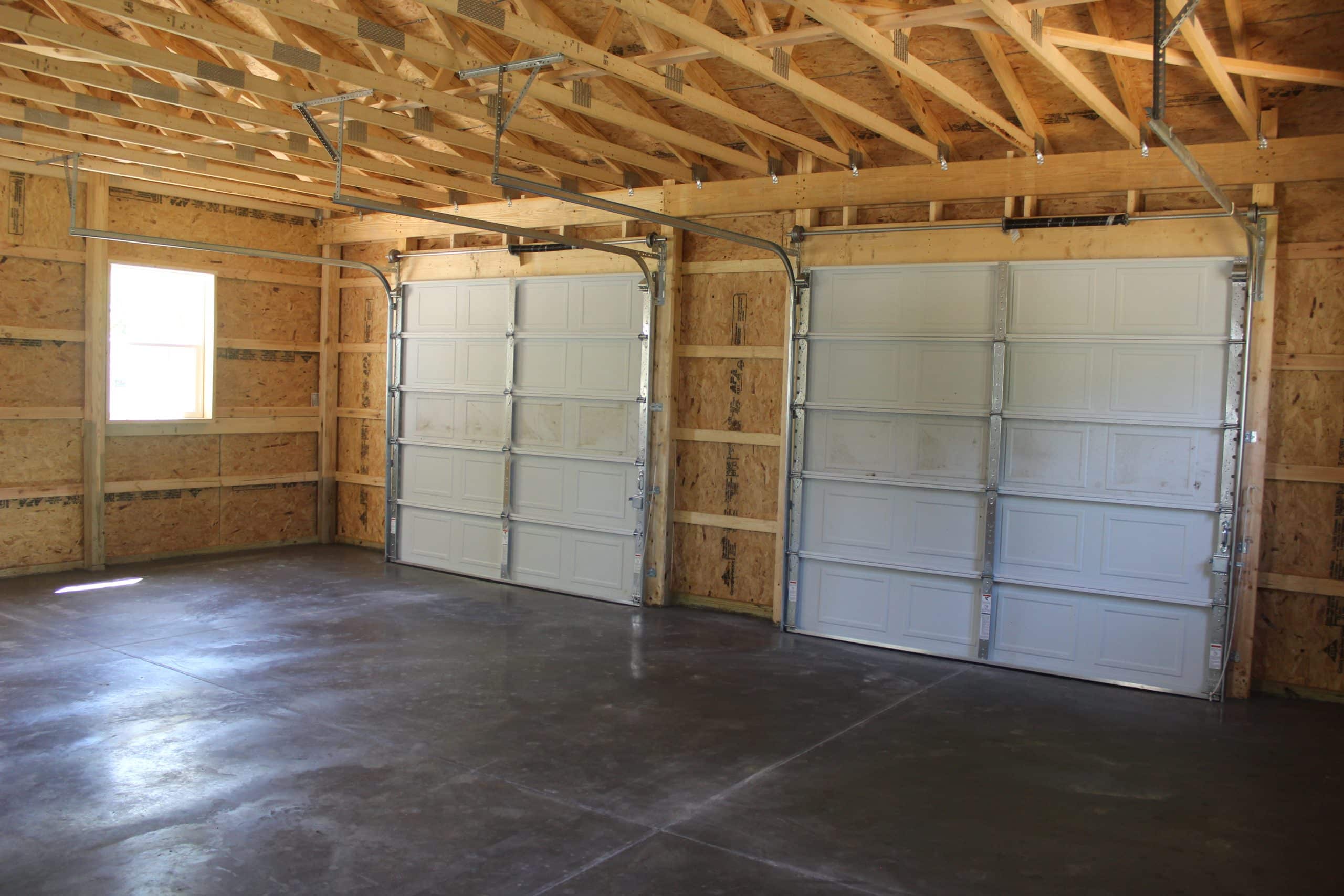

• Prefabricated trusses, 4/12 pitch, spaced 2' on center • Double 2x10 MSR truss bearers (triple above overhead door) • 3-ply 2x6 glu-lam posts, spaced per drawings • (1) 5”x16” concrete foundation block and (1) 80 lb bag of Sakrete per post • 2x4 truss bracing with 2x6 truss blocks • 2x4 roof purlins and wall girts, spaced 2' on center • Treated 2x8 skirtboard around perimeter of building • 7/16" OSB sheathing on roof and walls • Synthetic underlayment and GAF Timberline HD asphalt shingles on roof • Synthetic housewrap and Certainteed Mainstreet vinyl siding on walls • 12” overhangs • Vented ridge • Steel fascia with aluminum vented soffit • R-9 vapor barrier under roof sheathing • (1) 3068 9-lite pre-primed fiberglass hinged entry door with lockset • (2) 9'Wx8'H ProDoor non-insulated overhead doors with window panel (openers not included) • (4) ProVia 3648 vinyl single-hung windows • (1) ProVia 6048 twin vinyl single-hung window • 4” concrete on stone base with 6 mil vapor barrier, control joints, smooth finish
