24×32 Garage Kit

$11,992.00

SKU9750
Building Height10
Building Length32
Building TypeGarage
Building Width24
Roof Pitch4/12
Square Feet768
Truss TypeStandard Trusses
Location17557
Truss Spacing:4ft on center
Post Type:4x6 Treated
Post Footings:12" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:(2) 9x8 ProDoor 4210 R-6.8 insulated with windows & decorative hardware
Entry Doors:(1) 9-lite
Windows:(2) 36x48 single hung vinyl
Roofing:Everlast Lynx 28 Ga
Siding:Everlast Lynx 28 Ga
Vapor Barrier:Therma Guard
Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.

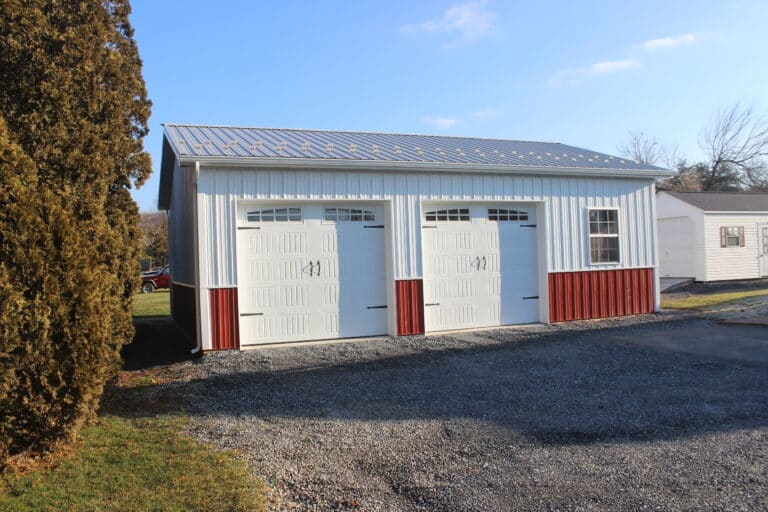

  • The finished building(s) shown in the photo gallery may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $3,597.60

SKU: 9750 Category:

Kit Description:

Material for 24’x32’x10’ pole barn: Treated 4×6 posts 8’ o/c. (1) 5×12 precast concrete footer block & (1) 80 lb bag sakrete per post. 2-ply 2×10 SYP headers (3-ply over 9’ eave openings). Pre-fabricated trusses with 4/12 roof pitch, 35-5-5 loading, 48″ on center. 12” overhangs on eaves and gables with vented metal soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” o/c. Everlast 28 Ga. LYNX Series metal roofing & siding. 3’-4” wainscot on all sides. Therma Guard R-9 vapor barrier on roof. Vented closures under ridge cap, foam closure strips at eaves. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (2) ProDoor 4212 9’x8′ overhead doors, R-6.8 insulated, vinyl back, short carriage panel, white, torsion springs, standard track, weather stripping, slide lock, stockbridge garage windows, blue ridge decorative hinges & handles. (1) 3.0 x 6.8 9-lite, fiberglass entry door. (2) 36”x48” white, vinyl, single hung windows. 4” GRK structural screws for headers. Color matched screws for roofing & siding.
