For this 26' x 32' x 10' pole barn, high-quality materials were used to create a sturdy and functional structure. The barn is supported by treated 4x6 posts, spaced 8' on center, each set on a 5x12 precast concrete footer block and secured with an 80 lb bag of Sakrete for added stability. The framework includes 2-ply 2x10 Southern Yellow Pine (SYP) headers, fastened with 4" GRK structural screws for extra strength.
The roof features pre-fabricated trusses with a 4/12 pitch, rated for 35-5-5 loading, and spaced 48" on center. It includes 12" overhangs on both the eaves and gables, finished with vented metal soffit for proper airflow. The walls are framed with 2x4 purlins and girts, spaced 24" on center, and supported by a 2x8 treated skirtboard for extra durability. The exterior is finished with Everlast 28-gauge Lynx Series metal roofing and siding, with a Therma Guard R-9 vapor barrier on the roof for moisture control. Vented closures under the ridge cap and foam closure strips at the eaves help with ventilation and weather protection. Painted steel ridge cap, rake and corner trim, base angle, gutter apron, overhead door trim, and double angle at the gables give the barn a clean, polished look.

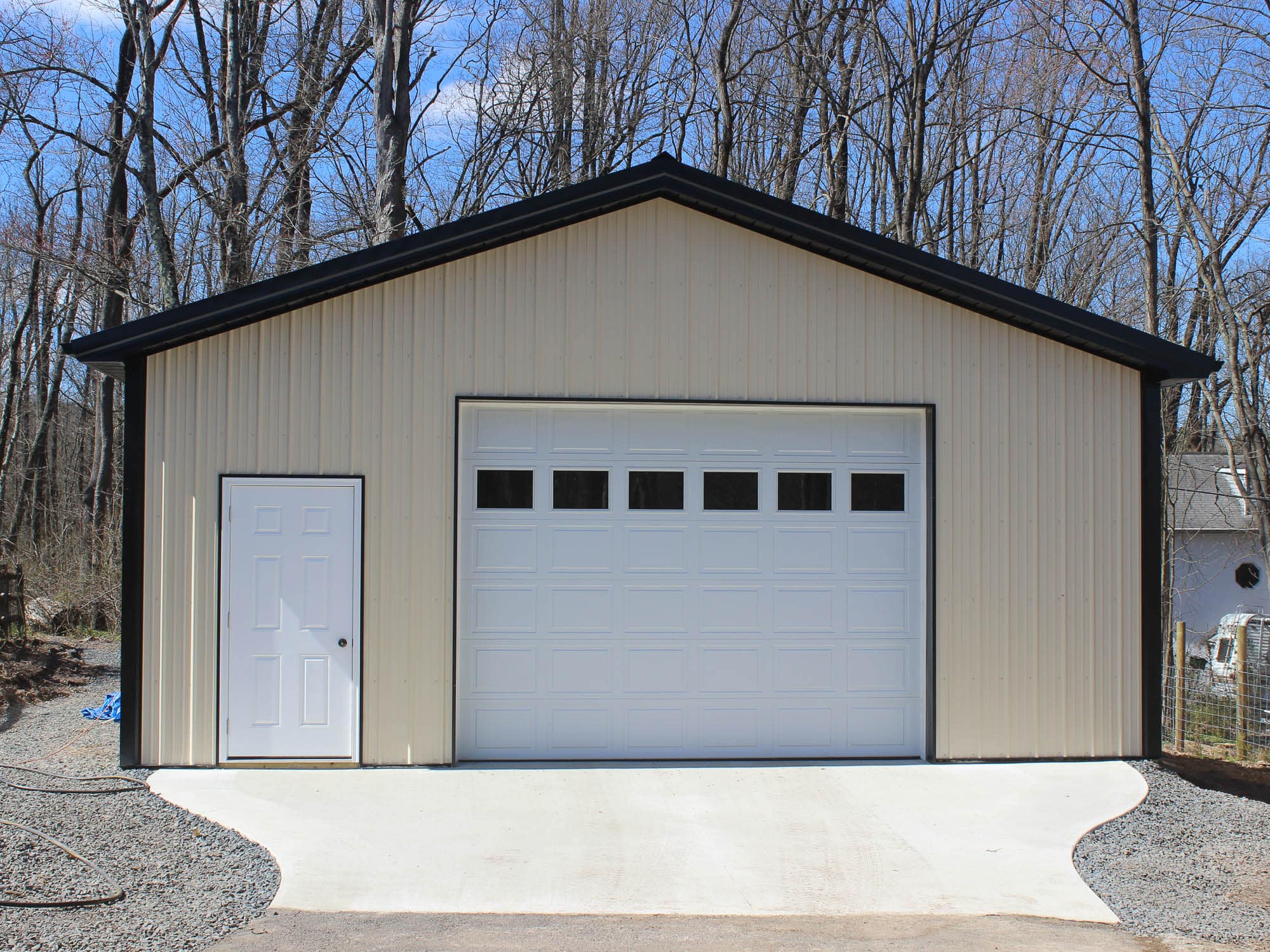

For access, the barn includes a ProDoor 4210 12' x 9' overhead door, R-6.8 insulated with a vinyl back and a raised panel wood grain finish in white. The door features torsion springs, a standard track, weather stripping, a steel angle, a slide lock, and no windows for added security. There’s also an 8' x 8' split sliding door with a Cannonball track and hardware for additional convenience. Two 3'0" x 6'8" solid 6-panel fiberglass entry doors provide easy access, while two 3' x 4' white vinyl windows with grids allow natural light and ventilation.
