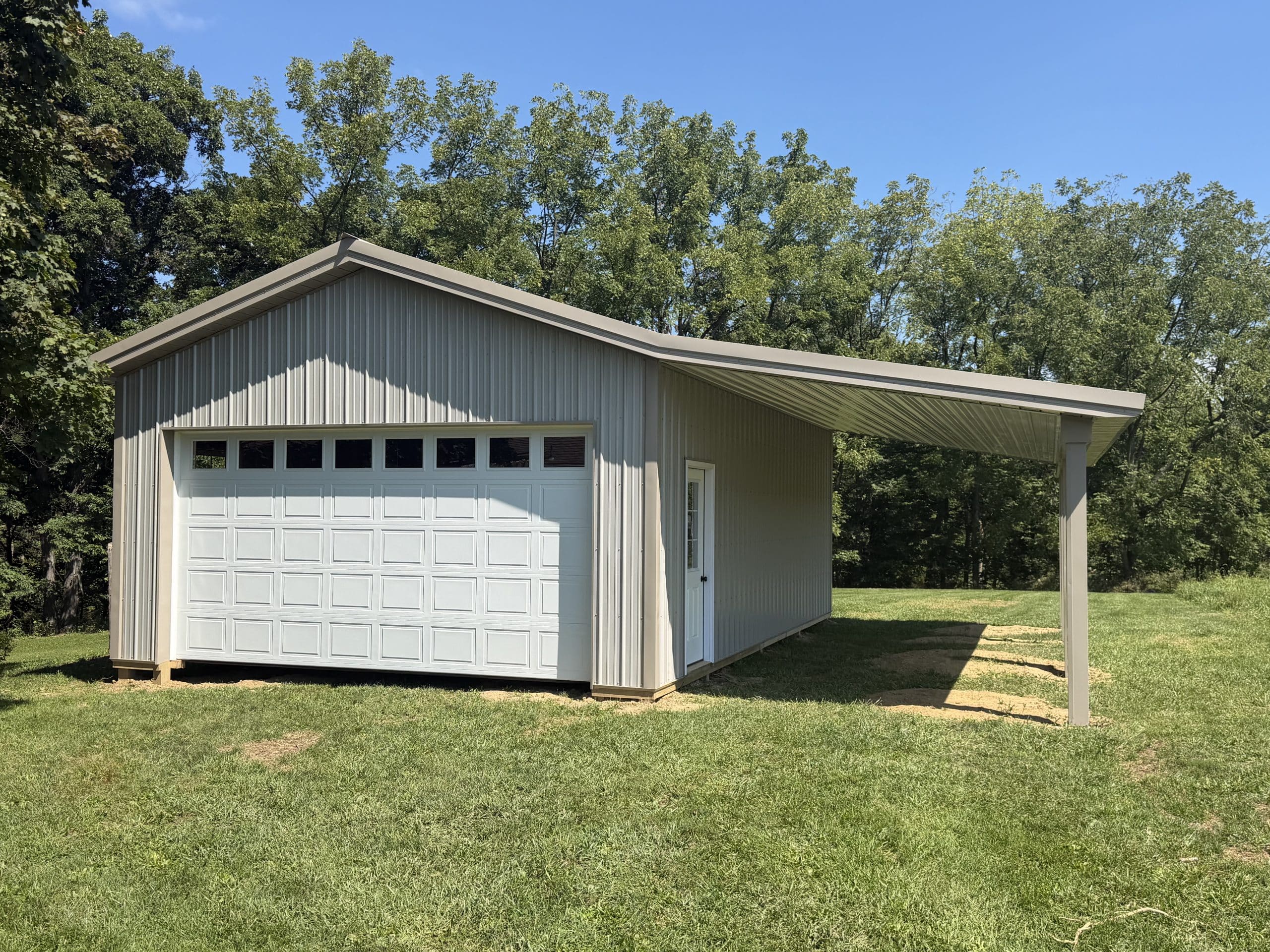

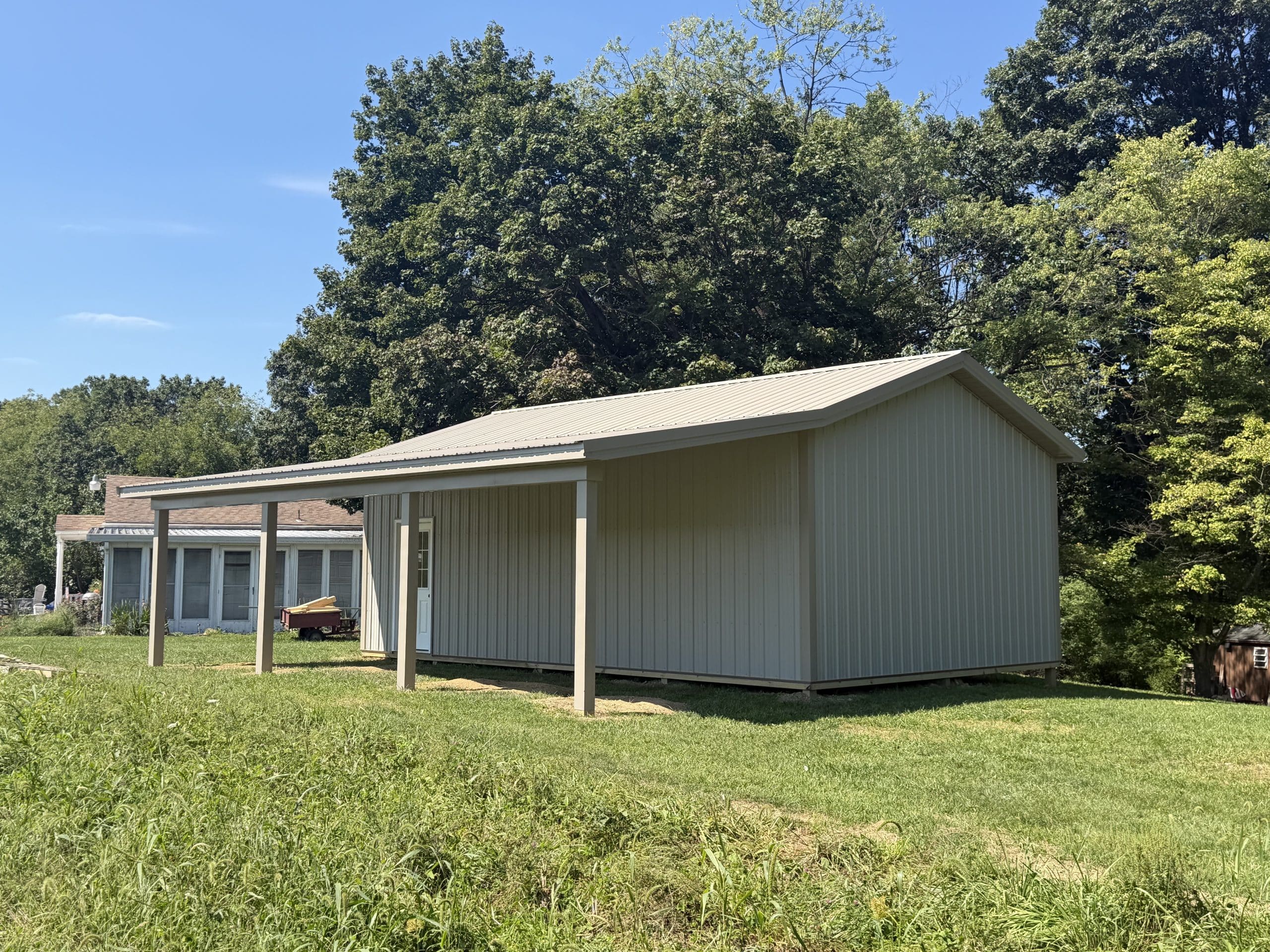

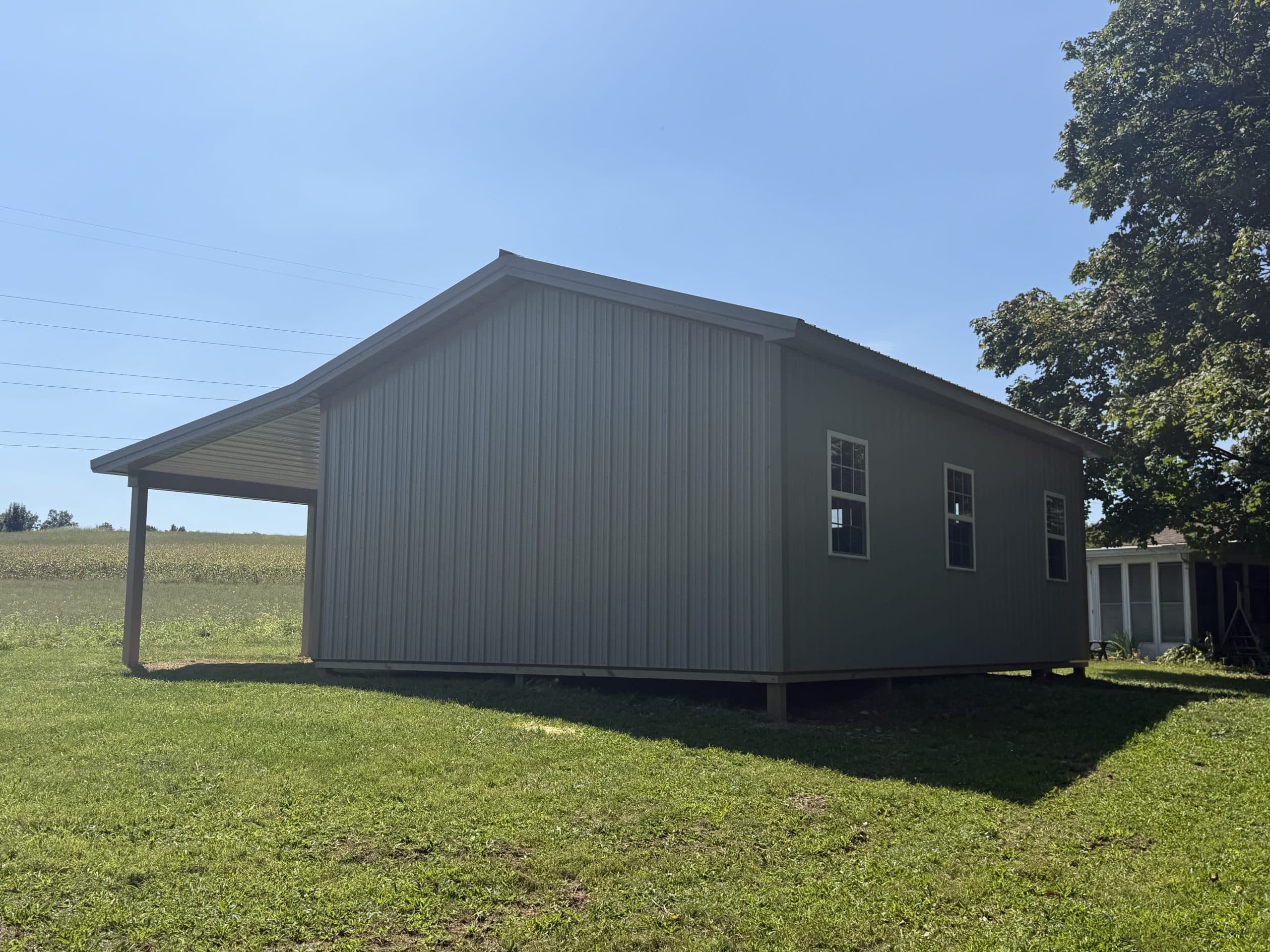

20x32x10 pole barn w/lean-to, Hummelstown, pa

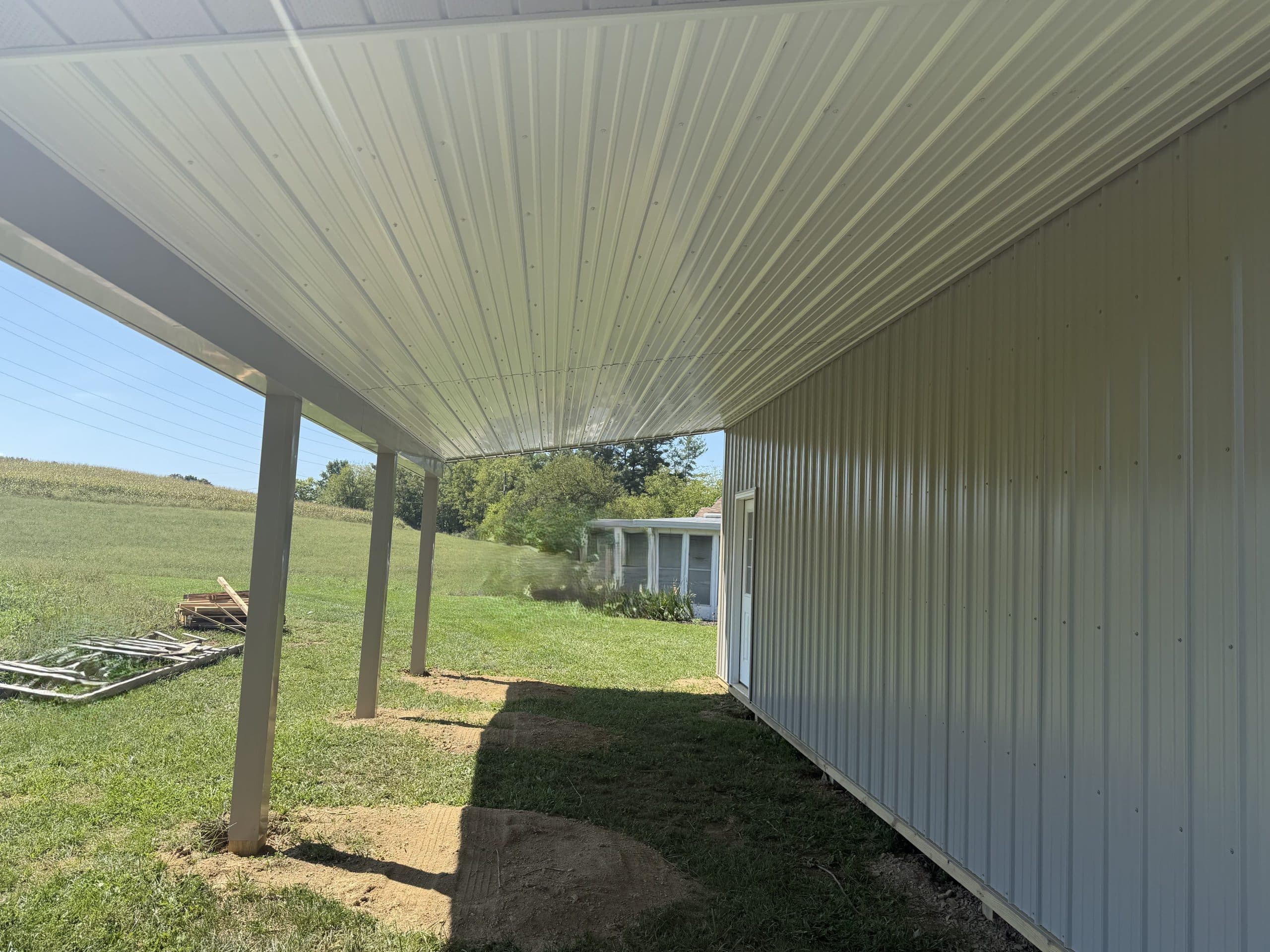

Prefabricated trusses, 4/12 pitch, spaced 4' on center • Double 2x10 MSR truss bearers • 3-ply 2x6 glu-lam posts, spaced per drawings • (1) 5”x16” concrete foundation block and (1) 80 lb bag of Sakrete per post • 2x4 truss bracing with 2x6 truss blocks • 2x4 roof purlins and wall girts, spaced 2' on center • Treated 2x8 skirtboard around perimeter of building • Everlast Omni Series 28 ga. steel roof and wall panels, screw attached • 12” overhangs • Vented ridge • Steel fascia with aluminum vented soffit • Therma-Guard R-9 vapor barrier under roof panels (1) 3’Wx6’8”H 9-lite preprimed fiberglass hinged entry door, hinged left from outside, with locking knob • (1) 16'Wx8'H ProDoor 5110 noninsulated overhead door, Color: white, with Liftmaster 2220L opener • (3) 36”Wx48”H ProVia vinyl single-hung windows, Color: white, with grids between glass LEAN-TO: • 2x6 rafters, 2.5/12 pitch, spaced 2' on center • 2x12 ledger • Double 2x10 MSR truss bearers • Treated 6x6 posts, spaced per drawings • 5”x16” concrete foundation block and (1) 80 lb bag of Sakrete per post • 2x4 roof purlins and wall girts, spaced 2' on center • Everlast Omni Series 28 ga. steel roof and wall panels, screw attached • 12” overhangs • Steel fascia, header face cap and post cap with aluminum vented soffit • R-9 vapor barrier under roof panels • Everlast ceiling panels, Color: white, screw attached
