40×80 Ag Building Kit

🔍

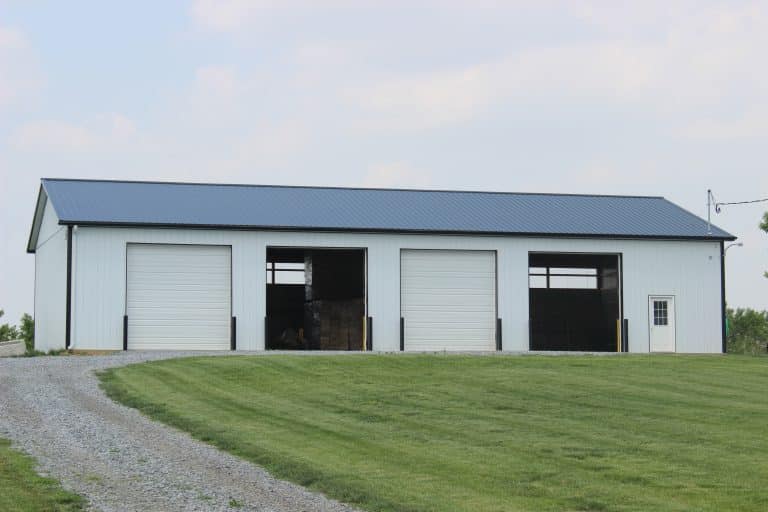

4 garage door 40x80 ag building for sale

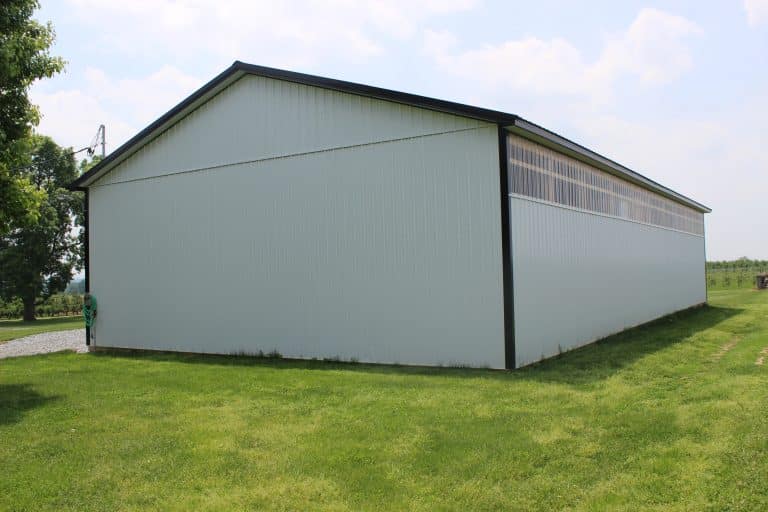

back of the 40x80 ag building for sale

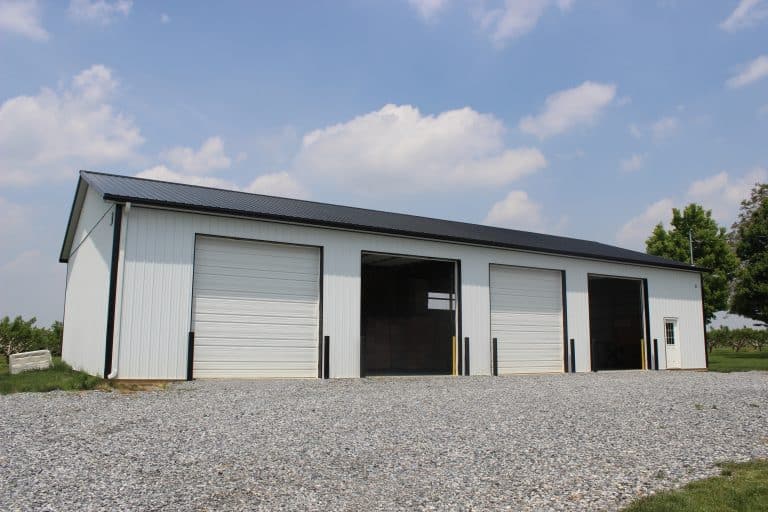

shot of white and black 4 garage door 40x80 ag building for sale

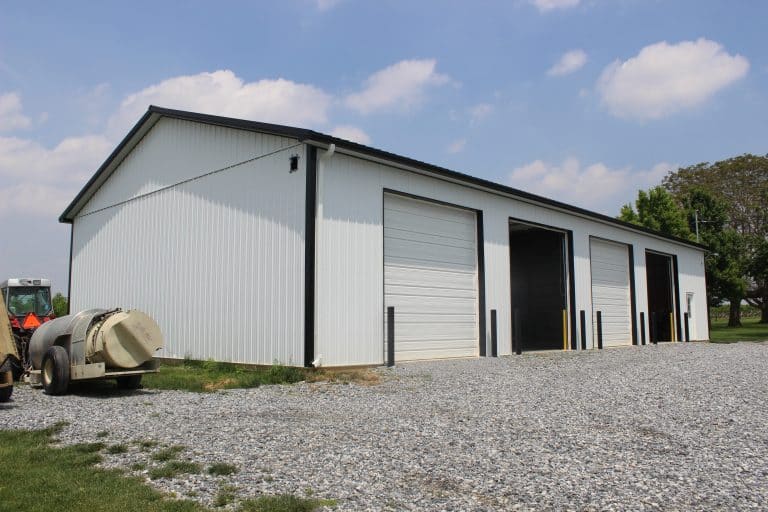

white and black ag building for sale 40x80 ag building for sale
  1. 4 garage door 40x80 ag building for sale
  2. back of the 40x80 ag building for sale
  3. shot of white and black 4 garage door 40x80 ag building for sale
  4. white and black ag building for sale 40x80 ag building for sale

$36,402.00

SKU9794
Building TypeAg Building
Building Length80
Building Width40
Building Height14
Roof Pitch4/12
Square Feet3200
Truss Type4/12 Pitch 4' o/c
Truss Spacing:4ft on center
Post Type:3-ply GluLam
Post Footings:16" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:12x12 ProDoor 5110 non-insulated
Entry Doors:1, 9-lite
Windows:none
Roofing:Everlast Lynx 28 Ga
Siding:Everlast Lynx 28 Ga
Vapor Barrier:Therma Guard
Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.
  • The finished building(s) shown in the photo gallery may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $10,920.60

SKU: 9794 Category:

Kit Description:

Material for 40’x80’x14’ pole barn: 3-ply 2×6 glu-lam posts 8’ on/center. (1) 5×16 precast concrete footer block & (1) 80 lb bag sakrete per post. 2-ply 2×12 SYP headers (2 ply 11-7/8″ LVL over 12’ openings). Pre-fabricated trusses with 4/12 roof pitch, 35-5-5 loading, 48″ on center. 12” overhangs on eaves and gables with vented aluminum soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” on/center. Everlast 28 Gauge LYNX Series metal roof & siding. 4′ clear skylight panels on one eave. Therma Guard R-9 vapor barrier on roof. Vented closures under ridge cap, foam closure strips at eaves. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (4) ProDoor 4110 12’x12′ OHD, Non-Insulated, Standard Raised Panel, No Windows, White, Torsion Springs, Standard Track, Weather Stripping, Steel Angle, Slide Lock. (1) 3.0 x 6.8 9-lite, fiberglass entry door. 4” GRK structural screws for headers. Color matched screws for roofing and siding.
