16×30 Shed Kit

🔍
16x30 shed kit
16x30 shed kit
16x30 shed kit
16x30 shed kit
  1. 16x30 shed kit
  2. 16x30 shed kit
  3. 16x30 shed kit
  4. 16x30 shed kit

$10,216.00

SKU14878
Building TypeShed
Building Length30
Building Width16
Building Height10
Roof Pitch4/12
Square Feet480
Truss Type4/12 Pitch 4' o/c
Truss Spacing:4ft on center
Post Footings:12" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:8x8 ProDoor 5110 non-insulated
Entry Doors:None
Windows:2, 36x48 white, single hung vinyl
Roofing:Everlast Lynx 28 Ga
Siding:1x12 Eastern White Pine Board & Batten
Vapor Barrier:Therma Guard & Housewrap
Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.

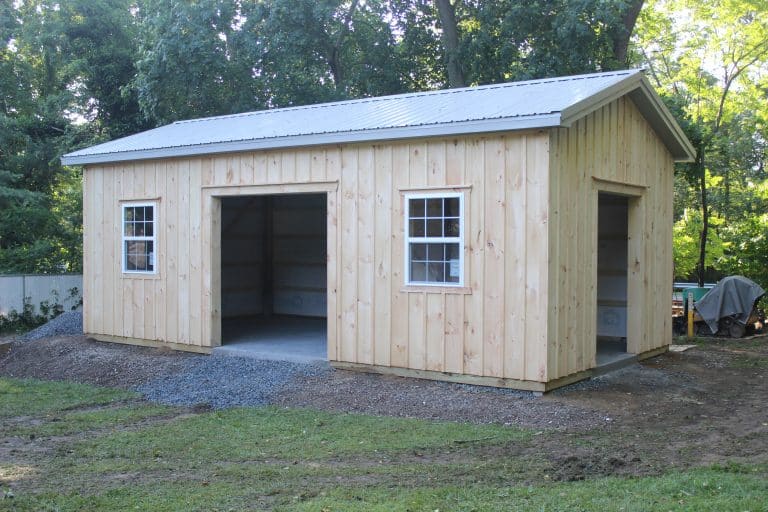

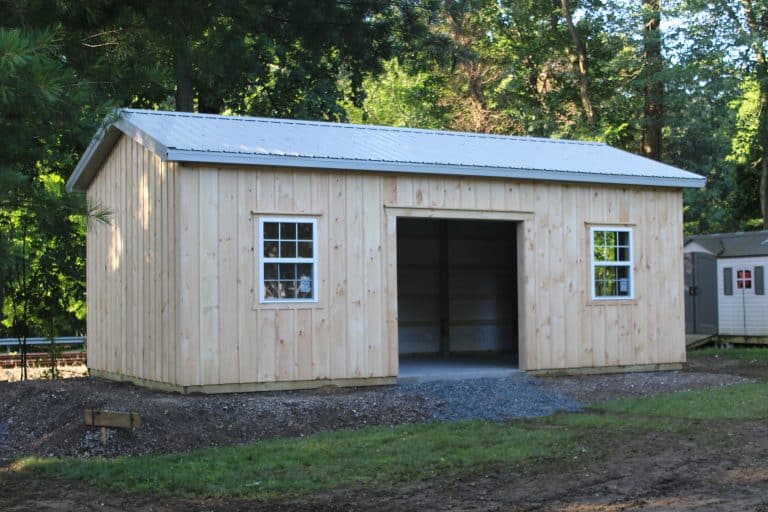

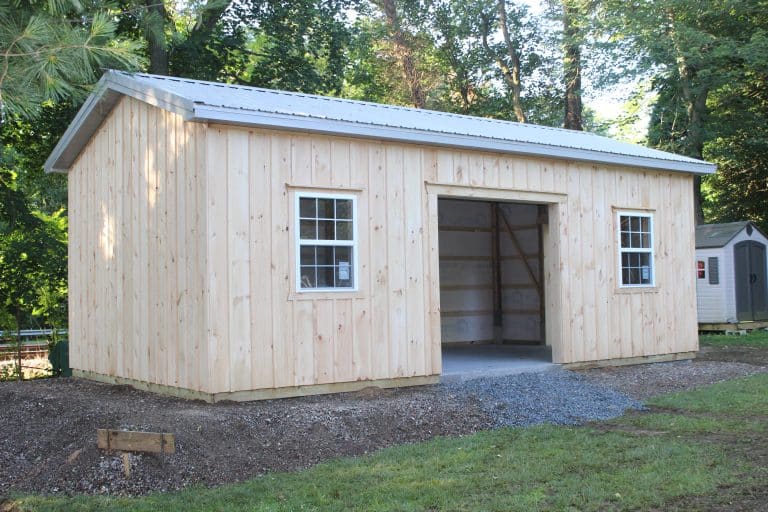

  • The finished building(s) shown in the photo gallery may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $3,064.80

SKU: 14878 Category:

Kit Description:

Material for 16’x30’x10’ pole barn: 4×6 treated posts. (1) 5×12 precast concrete footer block & (1) 80 lb. bag Sakrete per post. 2-ply 2×8 SYP headers. Prefabricated trusses with 4/12 roof pitch. 40-5-5 loading, 48″ on center. 12” overhangs on eaves & gables with vented metal soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” o/c. Everlast 28 Ga. LYNX Series metal roofing. Eastern White Pine 1×12 siding with 1×1-3/4″ battens. R-9 Therma-Guard vapor barrier on roof, Housewrap on sides. Vented closures under ridge cap, foam closures at eave. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (2) ProDoor 6410 8’x8′ overhead door, non insulated, raised panel wood grain, white, torsion springs, standard track, weather stripping, steel angle, slide lock, no windows. (2) 36″ x 48″ white, vinyl, single hung windows with flat grids. 4” GRK structural screws for headers color matched screws for roofing and siding.
