$31,149.00

SKU14883
Building TypeOpen Front
Building Length80
Building Width40
Building Height14
Roof Pitch4/12
Square Feet3200
Truss Type4/12 Pitch 4' o/c
Truss Spacing:4ft on center
Post Type:3-ply GluLam
Post Footings:16" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:None
Entry Doors:None
Windows:None
Roofing:Everlast Omni 28 Ga.
Siding:Everlast Omni 28 Ga.
Vapor Barrier:No
Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.

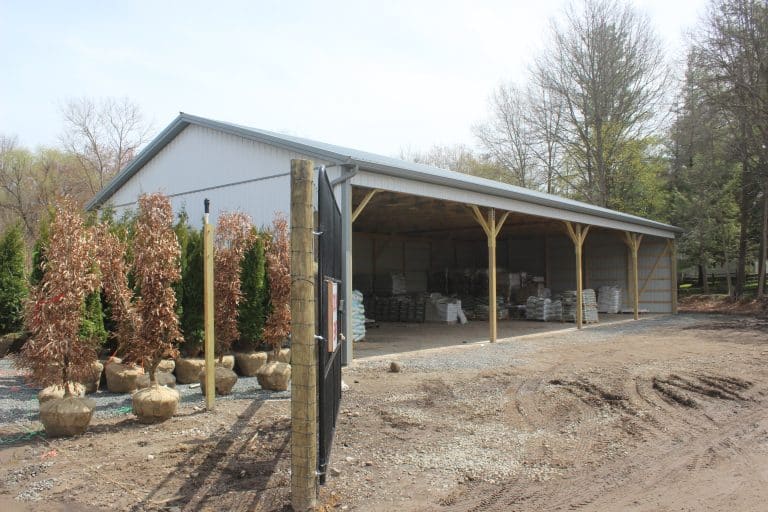

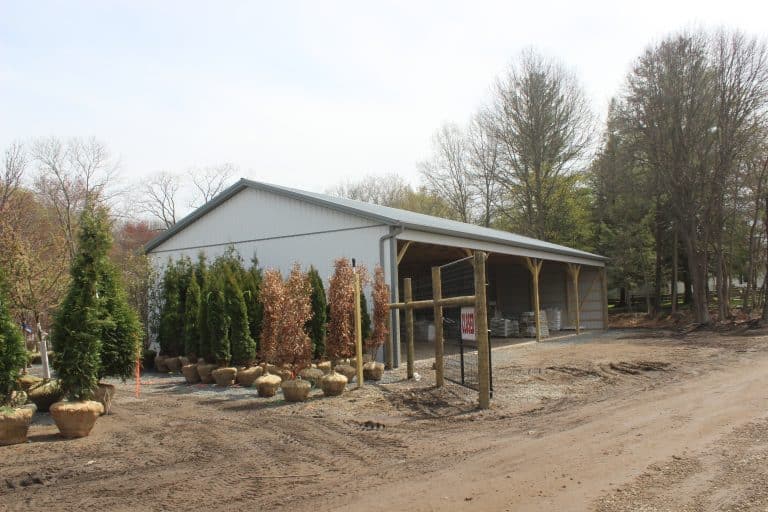

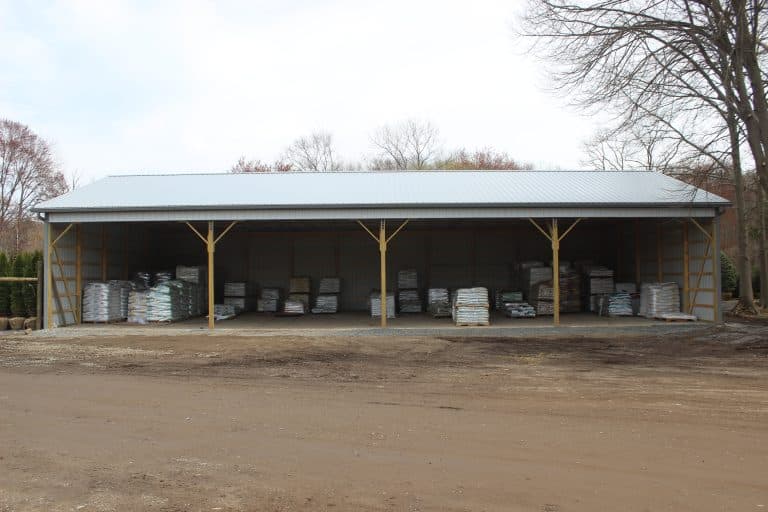

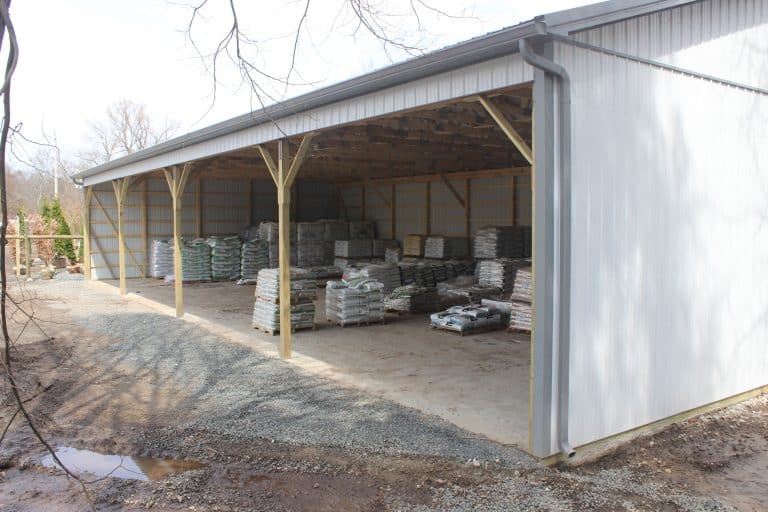

  • The finished building(s) shown in the photo portfolio may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $9,344.70

SKU: 14883 Category:

Kit Description:

Material for 40’x80’x14’ pole barn: 3-ply 2×6 glu-lam posts 8’ on/center (5-ply 2×8 posts on open eave). (1) 5×16 precast concrete footer block & (1) 80 lb bag sakrete per post (3 bags per post on open eave). 2-ply 2×12 YP truss bearers (triple 16” LVL on open eave). Pre-fabricated trusses with 4/12 roof pitch, 40-5-5 loading, 48″ on center. 12” overhangs on eaves and gables with vented aluminum soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” on/center. Everlast 28 Ga. OMNI Series metal roof & siding. Vented closures under ridge cap. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, double angle at gables. 4” GRK structural screws for headers, color matched screws for roofing and siding.
