24×26 2-Car Garage with Attic Kit

$18,756.00

SKU11158
Building Type2-Car Garage with Attic
Building Length26
Building Width24
Building Height10
Roof Pitch9/12
Square Feet624
Truss Type9/12 Pitch Attic Trusses 2' o/c
Truss Spacing:4ft on center
Post Footings:16" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:8x8 ProDoor 6410 R-10 insulated with windows
Entry Doors:1, 9-lite
Windows:6, 36x48 white, single hung vinyl
Roofing:Everlast Lynx 28 Ga
Siding:Everlast Lynx 28 Ga
Vapor Barrier:Therma Guard on roof & sides
Kit Notes:

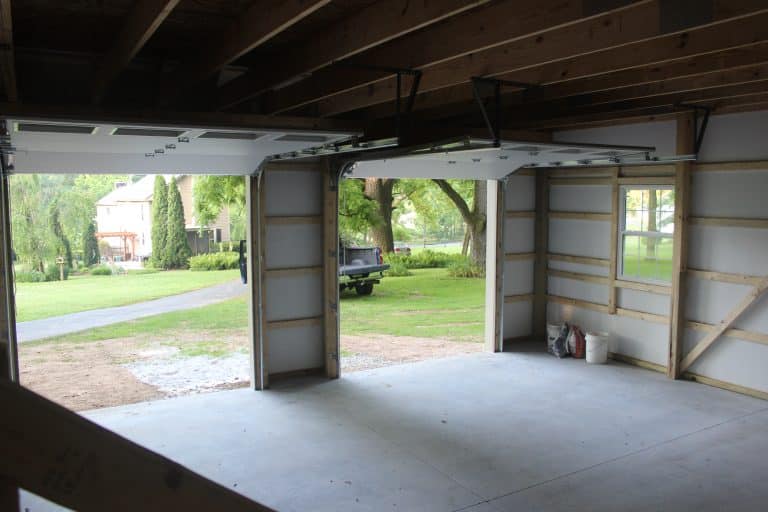

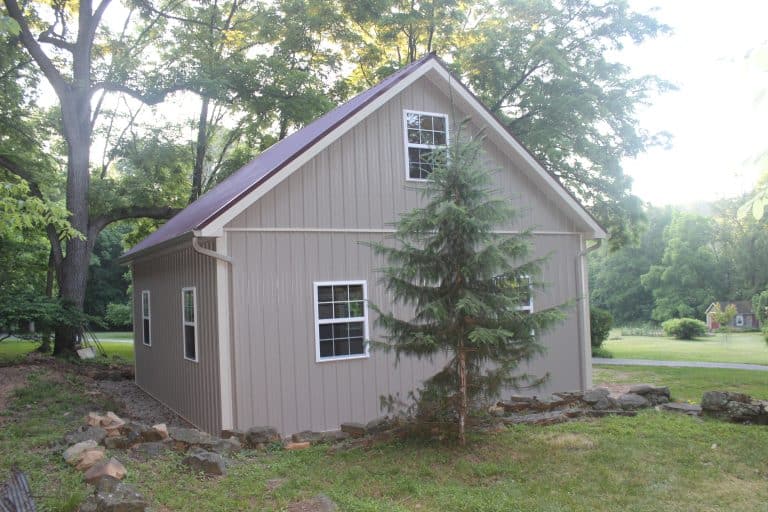

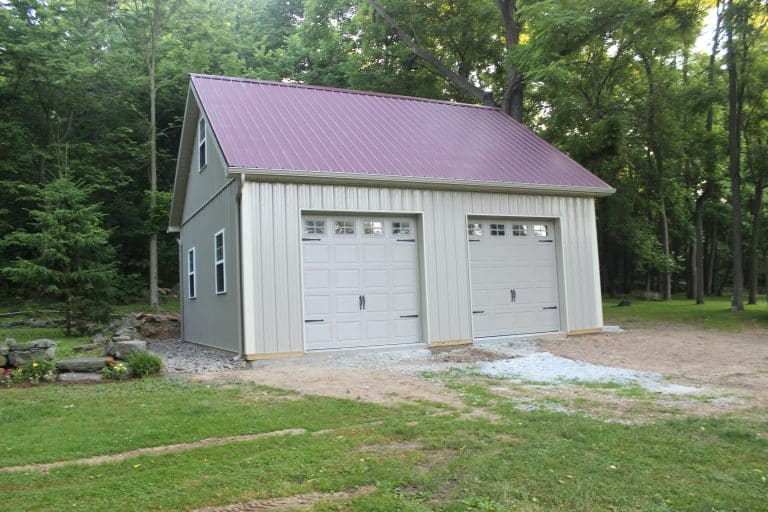

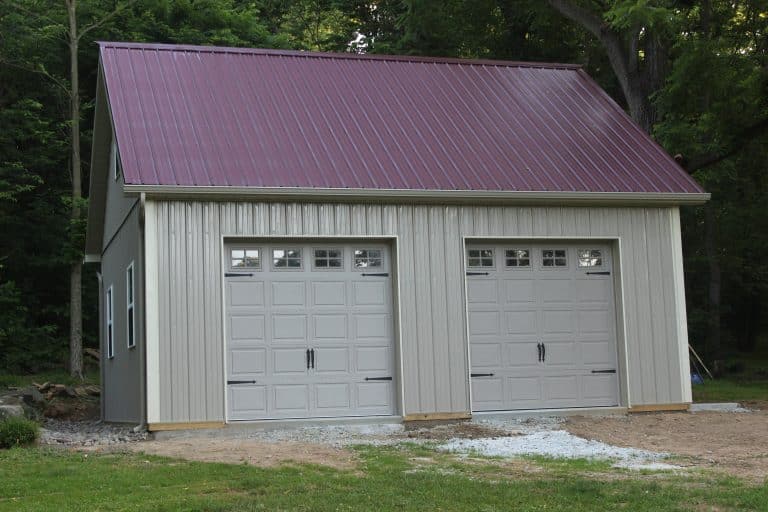

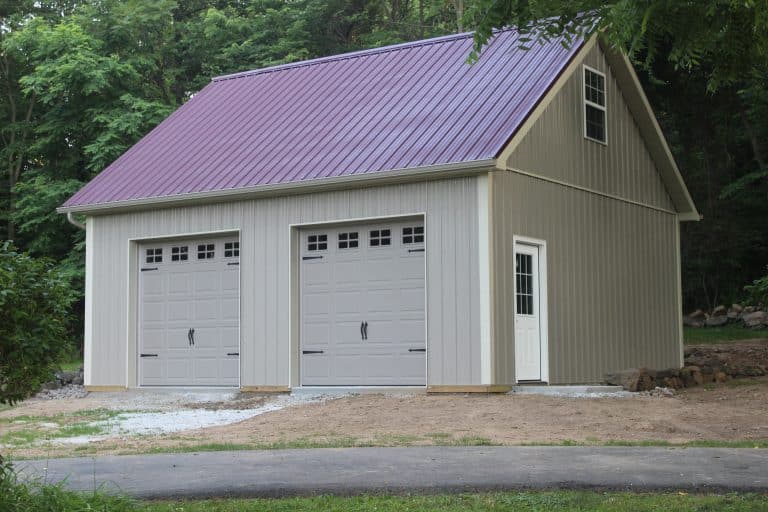

These pictures show optional upgraded Clay garage doors.

Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.
  • The finished building(s) shown in the photo gallery may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $5,626.80

SKU: 11158 Category:

Kit Description:

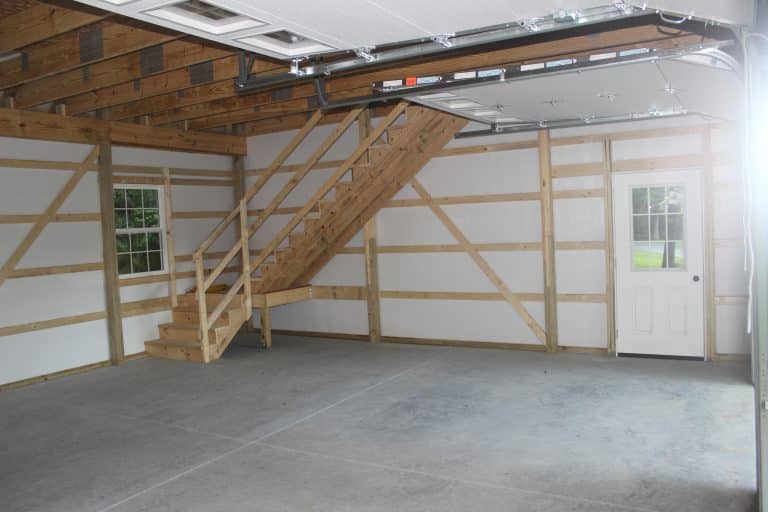

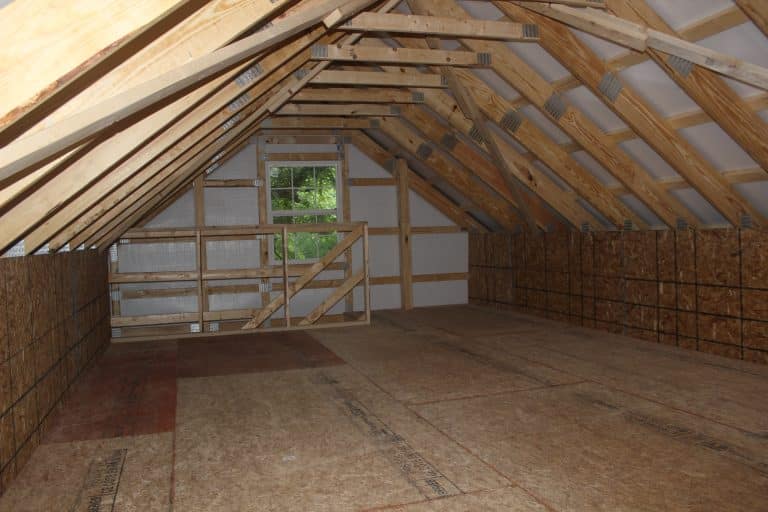

Material for 24’x26’x10’ pole barn: 3-ply 2×6 glu-lam posts 8’ o/c. (1) 5×16 precast concrete footer block & (1) 80 lb. bag Sakrete per post. 2-ply 2×12 SYP headers. Prefabricated attic storage trusses with 9/12 roof pitch. 30-5-5 loading, 24″ on center. 12” overhangs on eaves & gables with vented metal soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” o/c. Everlast 28 Ga. LYNX Series metal roof & siding. R-9 Therma-Guard vapor barrier on roof. Vented closures under ridge cap, foam closures at eave. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (1) 8’x8’ Pro Door 6412 garage door, White, R-10 insulated, standard track, slide lock, One Row Windows with Stockton Inserts, Blue Ridge Hinges, Blue Ridge Handles. (1) 3.0 x 6.8 9-lite, fiberglass entry door with Black, keyed doorknob. (4) 36”x48” white, vinyl, single hung windows with grids. 4” GRK structural screws for headers. — 14’x6’-8” attic room; 3/4” OSB flooring, 7/16” OSB 4’ high on sidewalls, 36” split stairs with landing 5’ high, (3) 2×12 stringers, 2×12 treads, 1×8 risers, 2×4 railings.
