24×40 Garage in Damascus, PA

Original Job #
13884
Dimensions
24x40x10
Similar Kit For Sale
Building Type
Garage
Location
Damascus, PA, USA
Square Feet
960
3D Builder
Garage Doors
2
Entry Doors
1

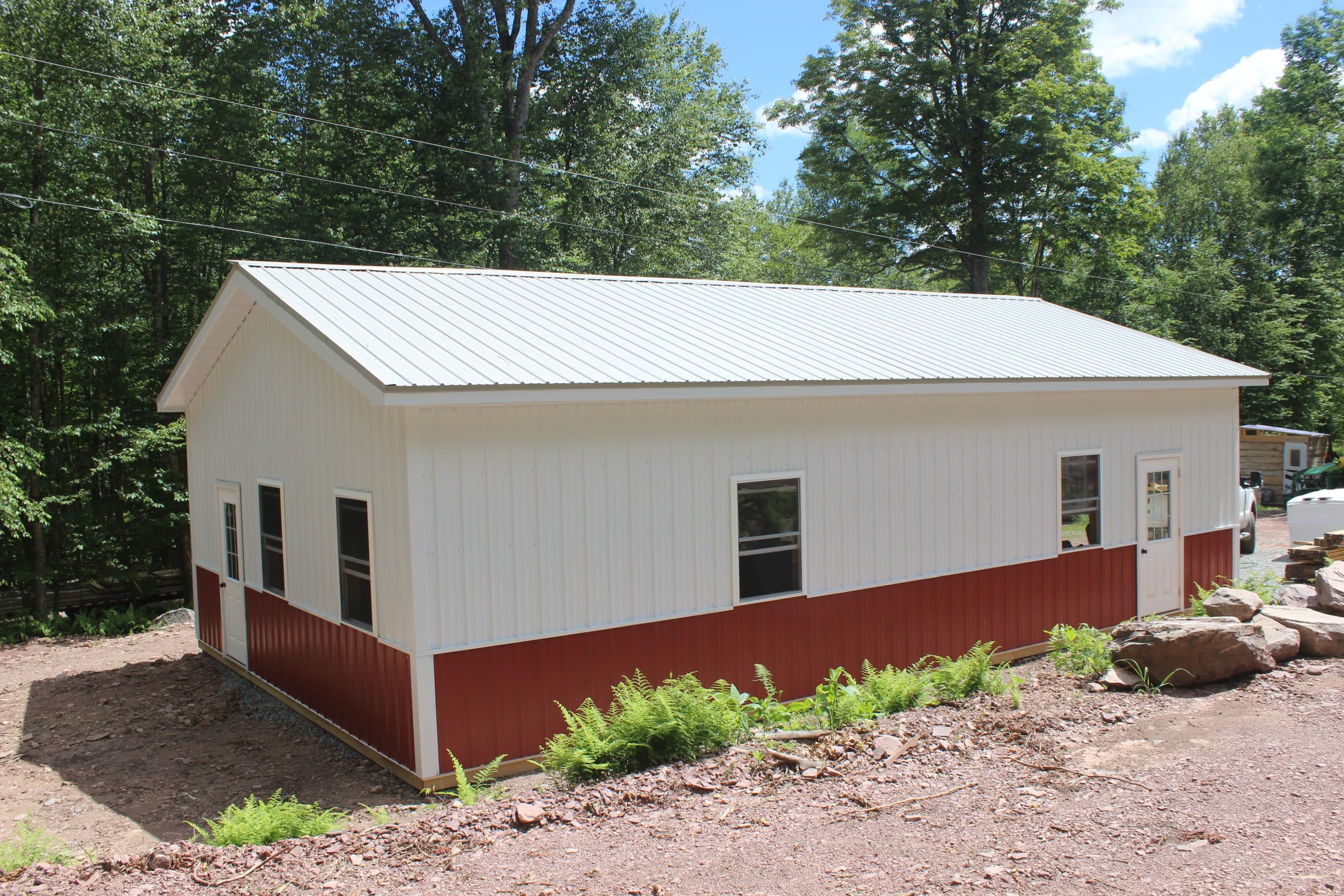

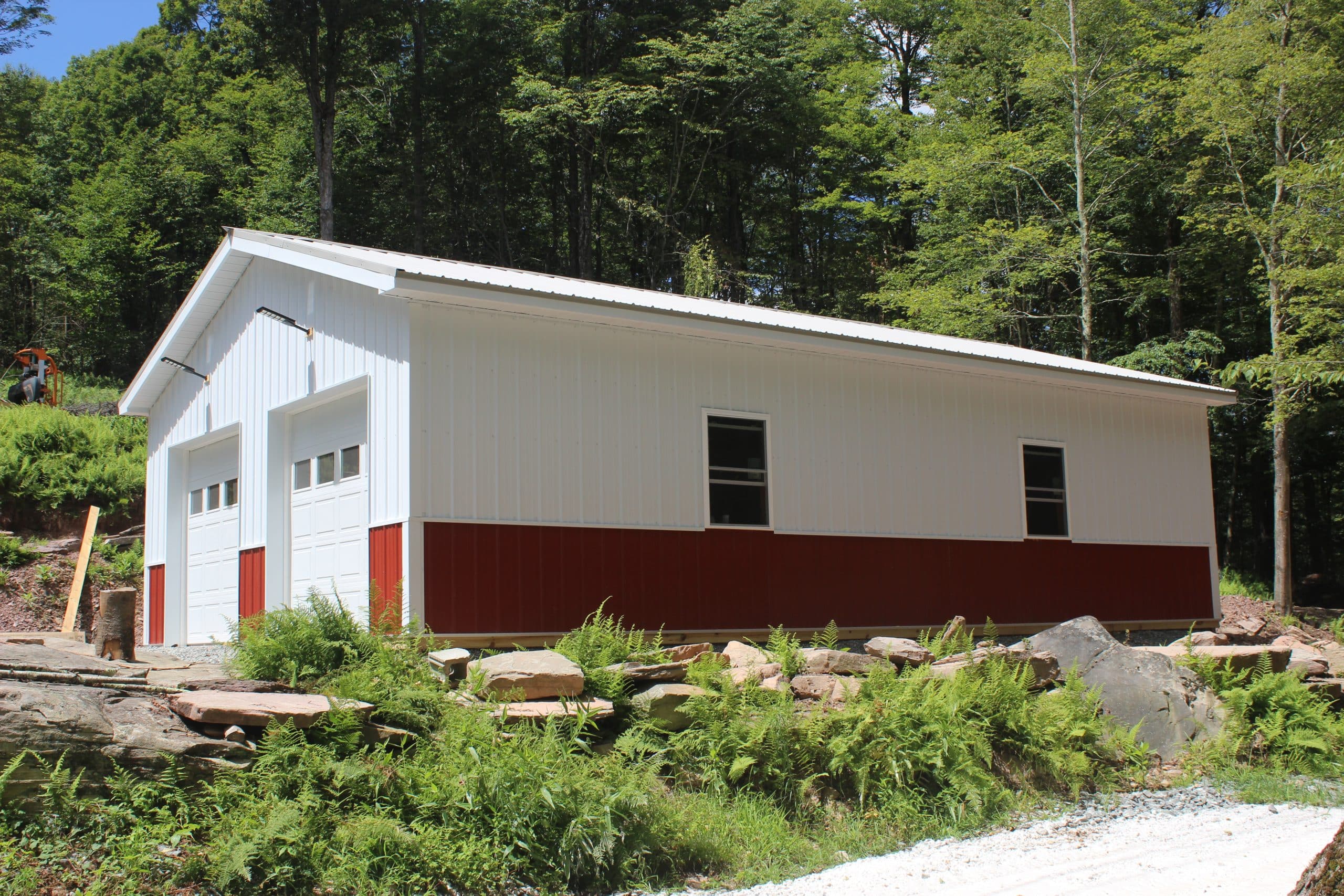

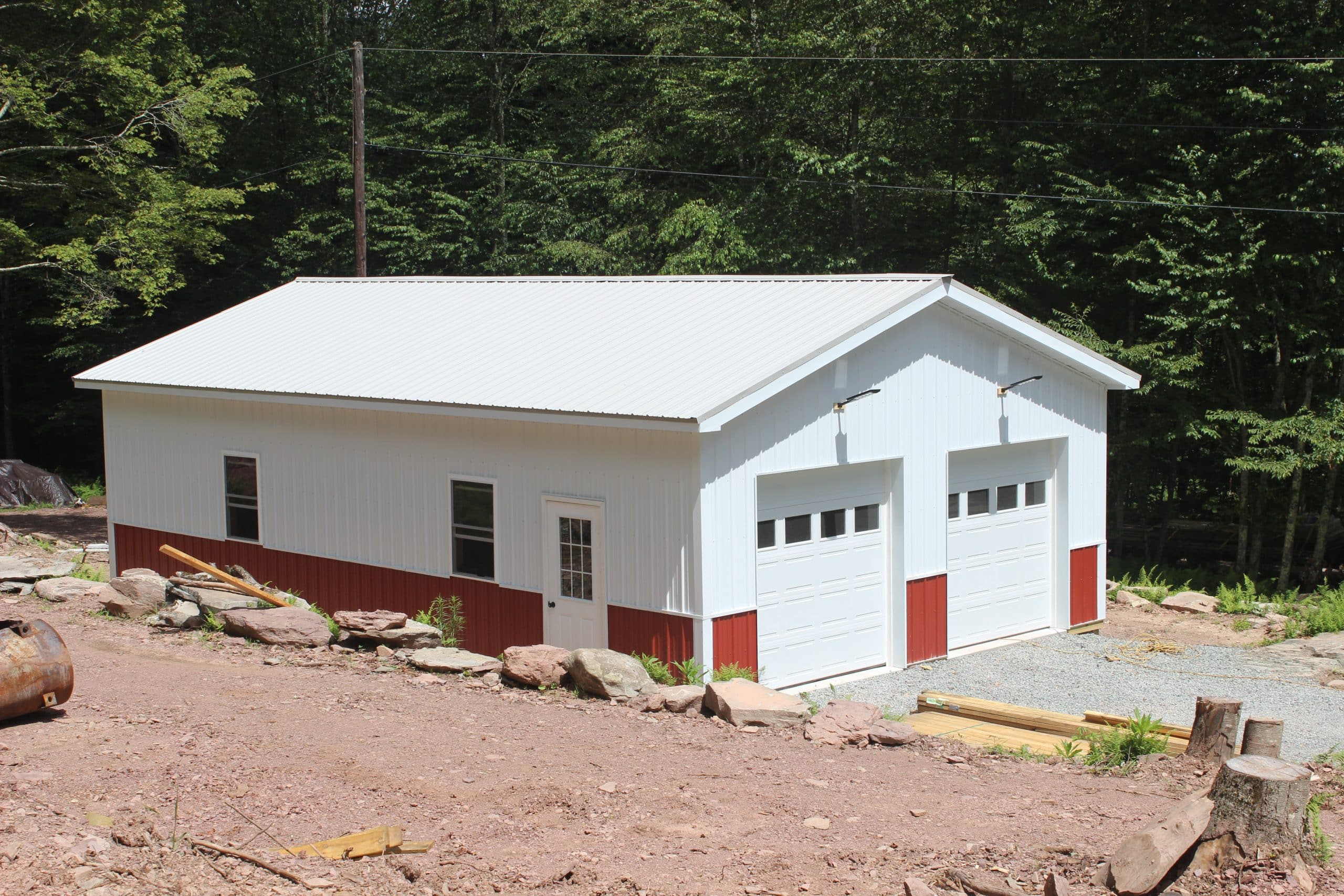

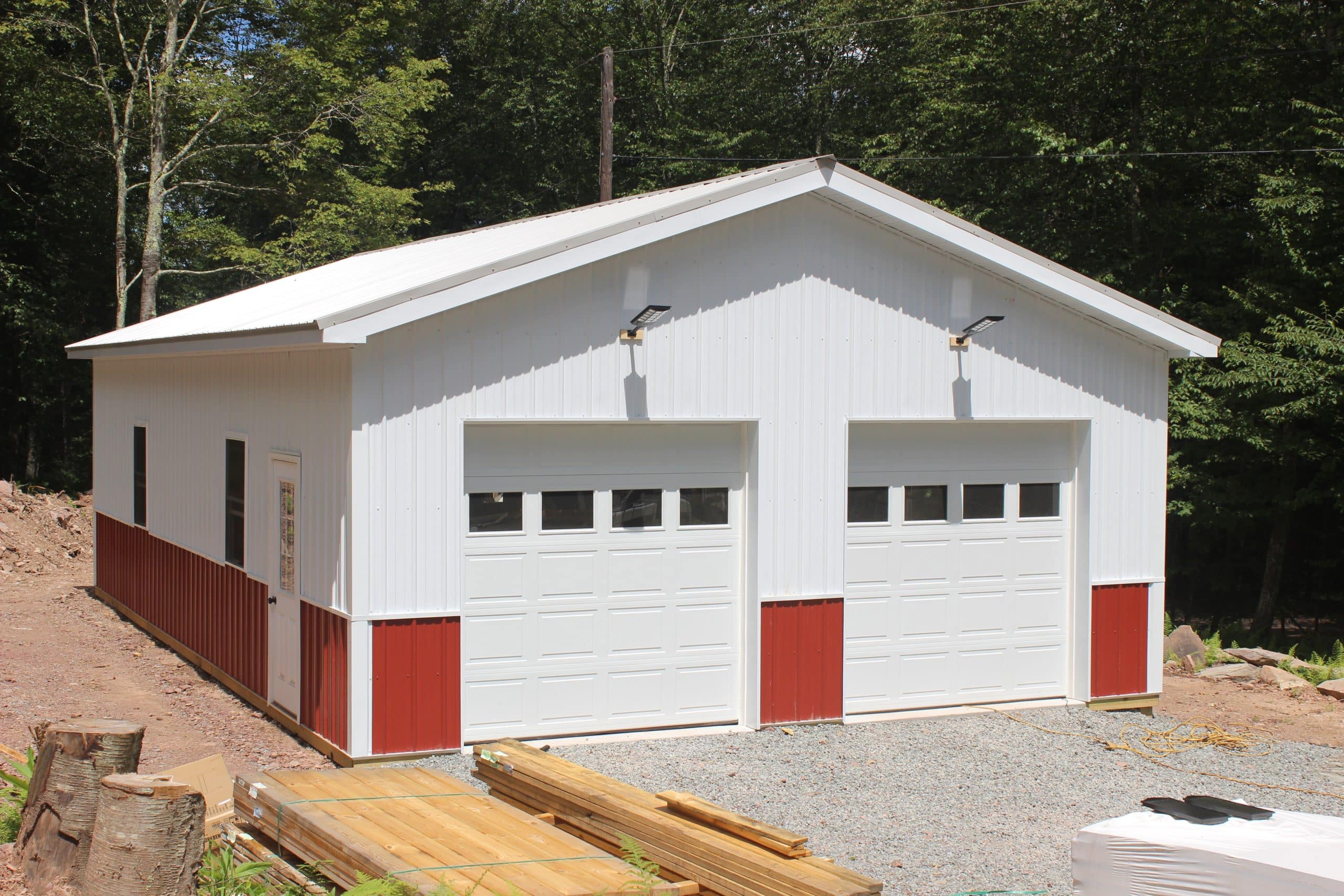

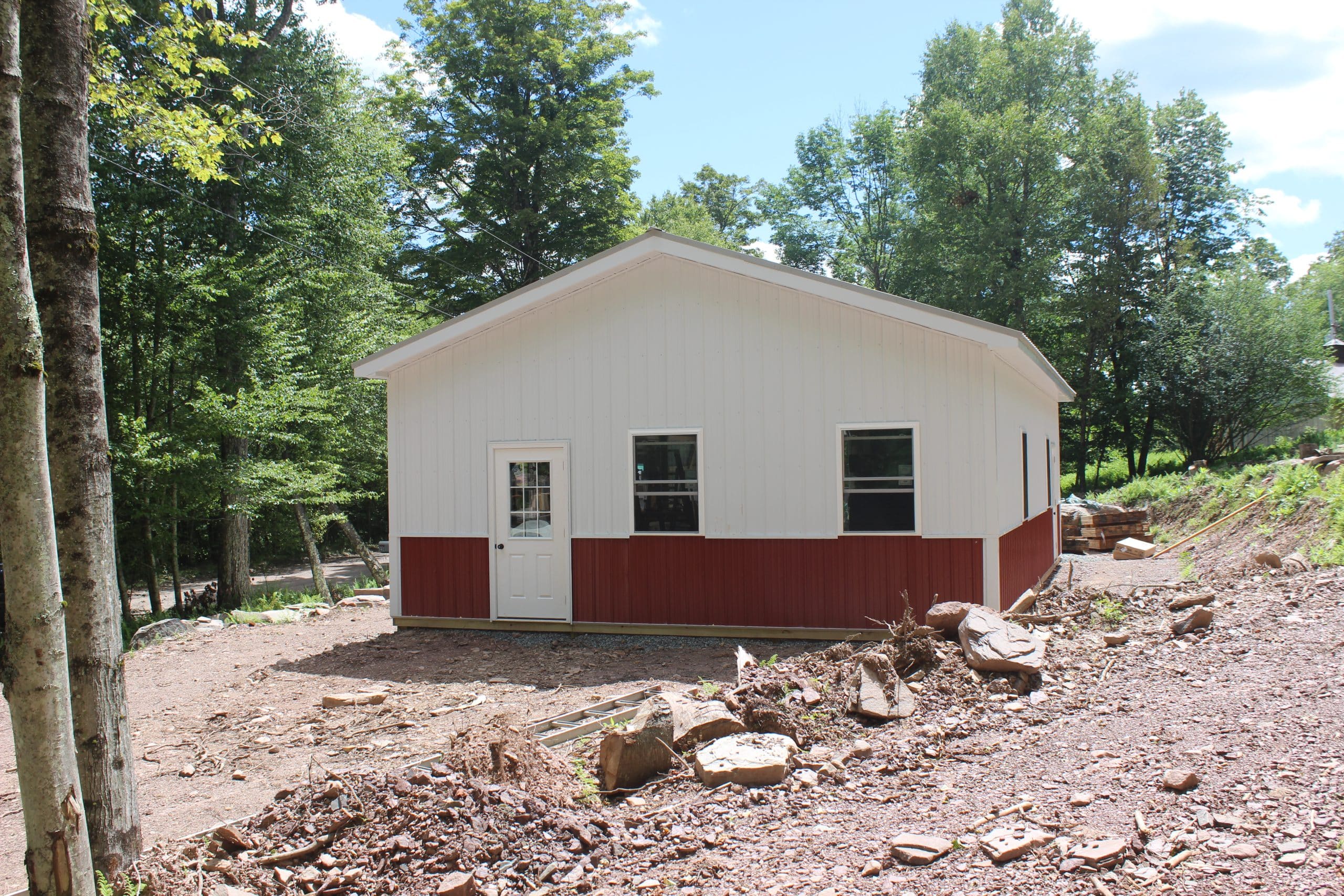

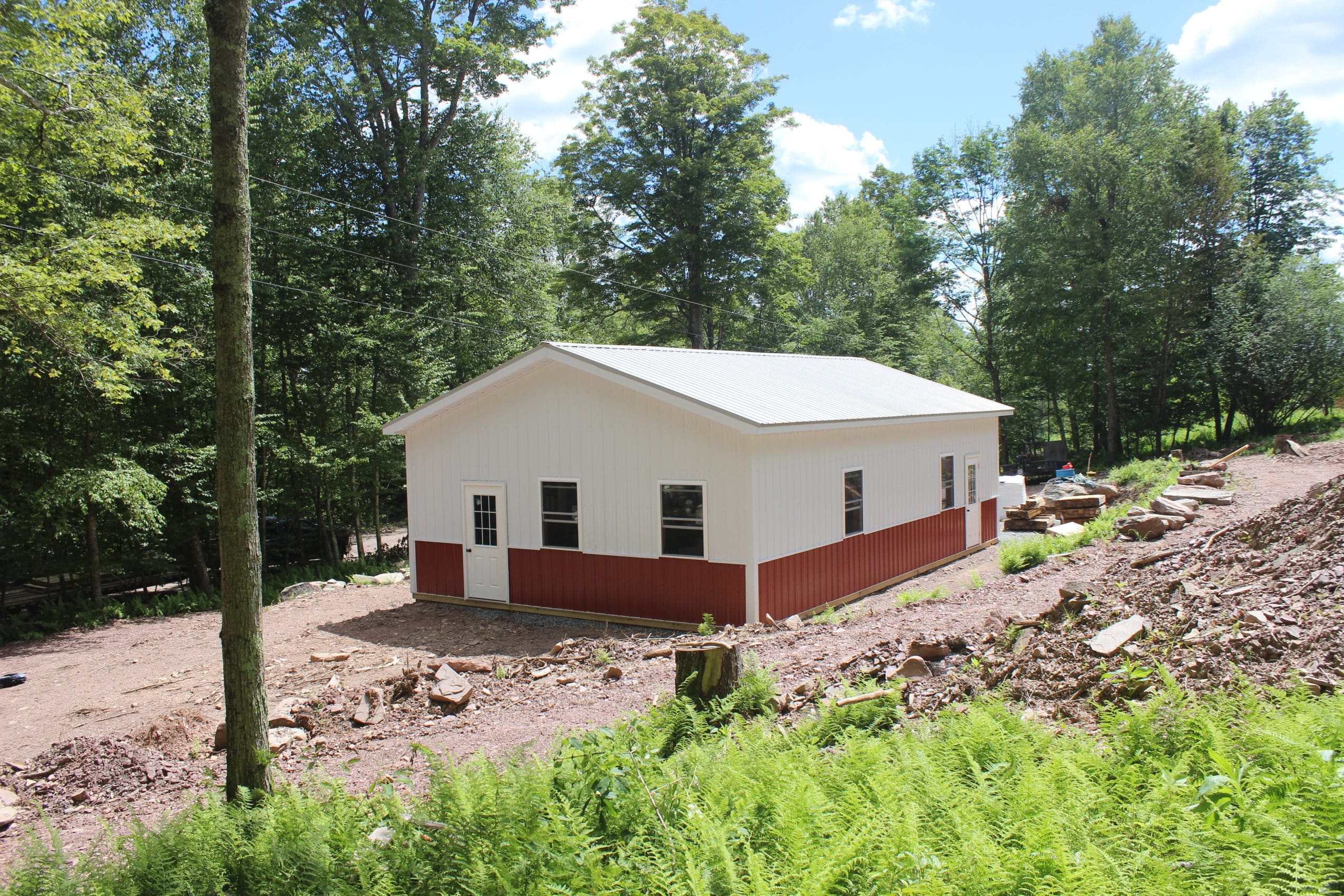

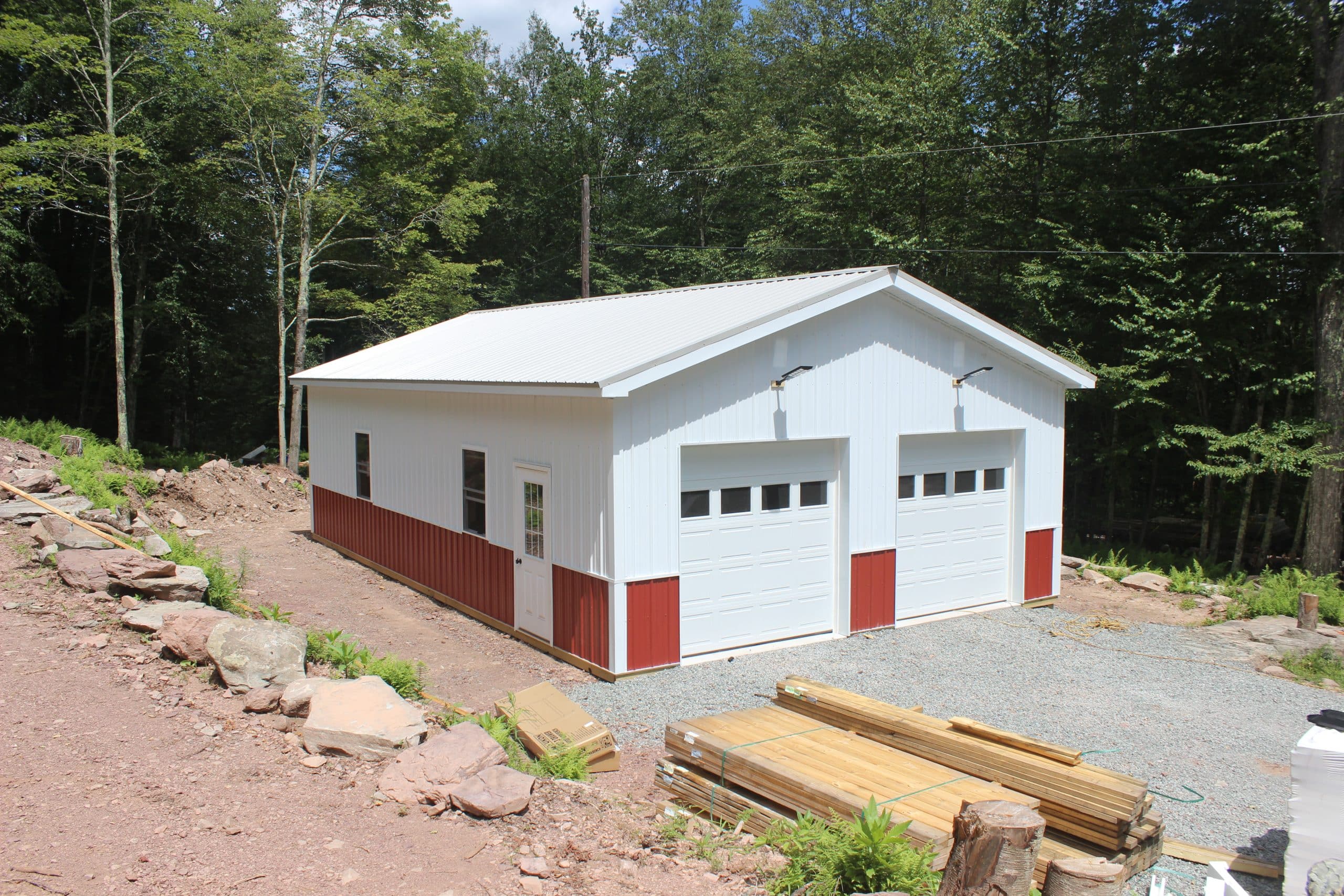

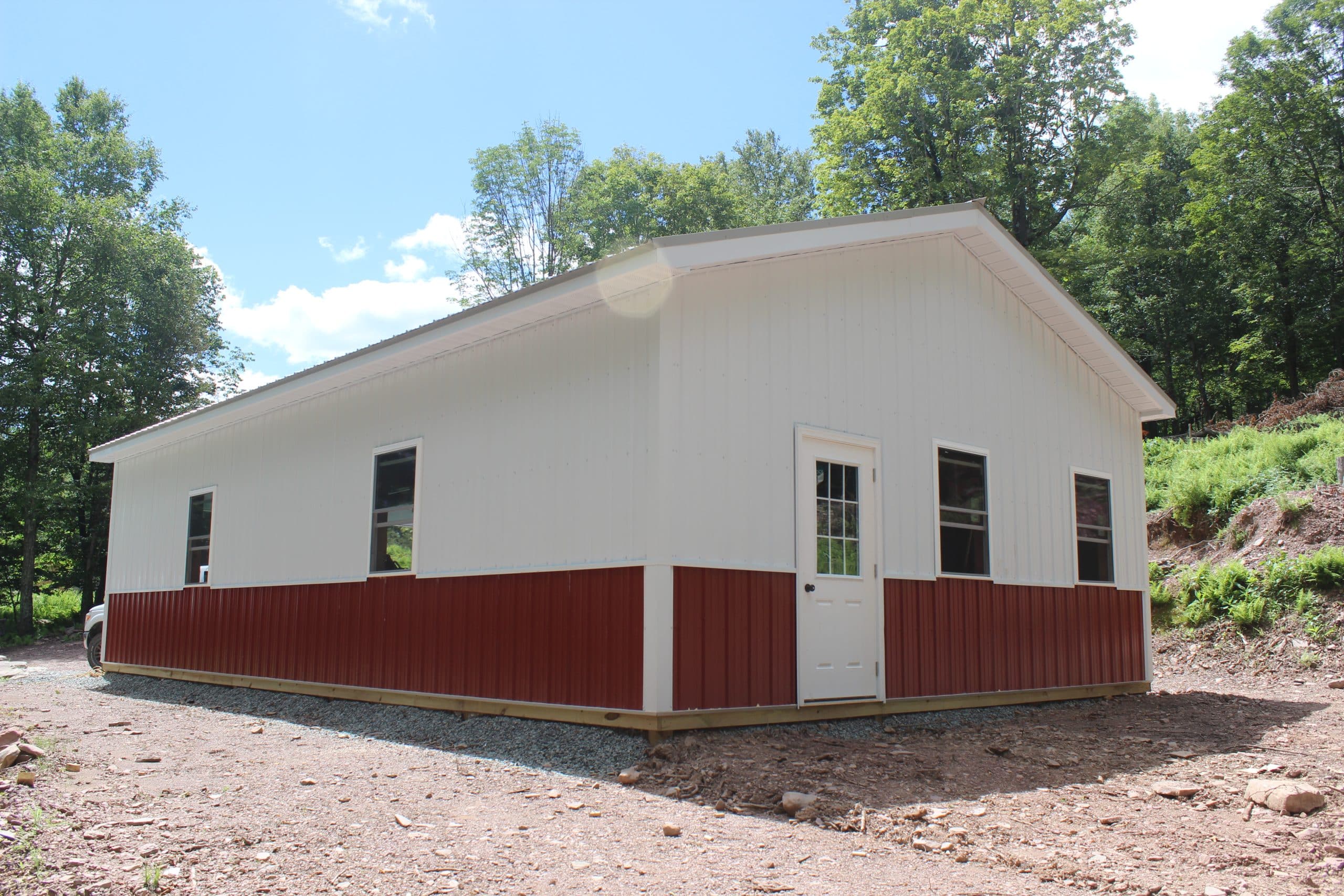

This 24’x40’x10’ Garage was built with Treated 4x6 posts 8’ on/center, 5x12 precast concrete footer block with Sakrete per post, 2-ply 2x10 MSR headers, prefabricated trusses with 4/12 roof pitch, 50-5-5 loading, and 12” overhangs on eaves & gables with vented, aluminum soffit and painted steel fascia. Everlast 28 gauge LYNX Series metal roofing & siding, 3' 4" wainscot on all sides with Therma Guard R-9 vapor barrier on roof. It also features two 8x8 white insulated overhead doors with a row of glass windows, two 6-panel fiberglass entry doors, and 6 white vinyl single hung windows without grids.
