30×40 Garage Kit

$18,310.00

SKU9760
Building Height14
Building Length40
Building TypeGarage
Building Width30
Roof Pitch4/12
Square Feet1200
Truss TypeStandard Trusses
Location17557
Truss Spacing:4ft on center
Post Type:3-ply GluLam
Post Footings:16" Cookie & Sakrete
Purlins:2x4 2ft on center
Girts:2x4 2ft on center
Garage Doors:(2) 10x10 ProDoor 6410 R-10 insulated
Entry Doors:(2) 9-lite
Roofing:Everlast Lynx 28 Ga
Siding:Everlast Lynx 28 Ga
Vapor Barrier:Therma Guard
Smart Build Link:Open in 3D Builder

Please Note:

  • This is a materials package only. Construction labor is not included. New Holland Supply can arrange for a contractor to construct your building or you may arrange construction yourself.
  • Our building specifications (snow load, wind rating, etc.) meet local requirements in southeast Pennsylvania. Please notify us if your building materials package needs to be modified to meet local requirements in your area.

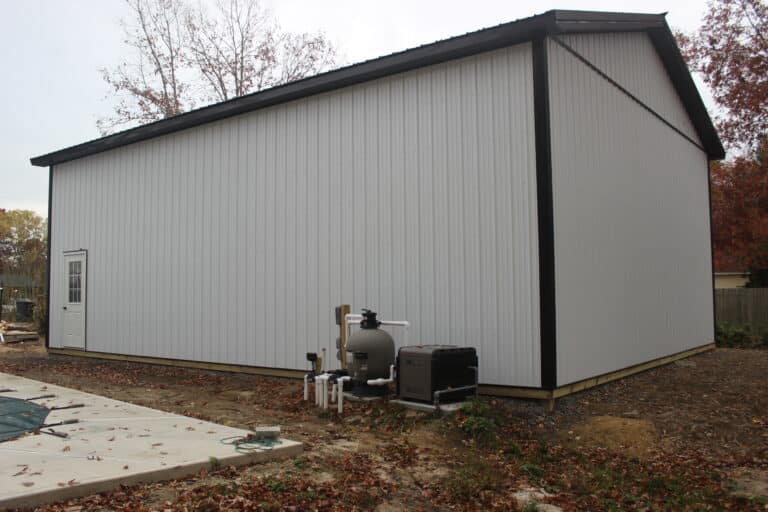

  • The finished building(s) shown in the photo gallery may include optional upgrades.
  • Our fulfillment team will contact you before delivery to confirm your order's final details (colors, specs, local sales tax, delivery date, etc.).
  • Please note that our products are subject to lead times, which can extend up to 3-4 weeks.
  • Shipping and tax are calculated at final purchase with sales team.

Pay a deposit $5,493.00

SKU: 9760 Category:

Kit Description:

Material for 30’x40’x14’ pole barn: 3-ply 2×6 glu-lam posts. (1) 5×16 precast concrete footer block & (1) 80 lb bag sakrete per post. 2-ply 2×10 MSR headers. Pre-fabricated trusses with 4/12 roof pitch, 35-5-5 loading, 48″ on center. 12” overhangs on eaves & gables with vented aluminum soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” on/center. Everlast 28 Ga. LYNX Series metal roof & siding. Therma Guard R-9 vapor barrier on roof. Vented closures under ridge cap, foam closure strips at eaves. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (2) 10’x10’ ProDoor 6410 garage door, white, R-10 insulated, steel back, Hi Lift track for 14′ ceiling, slide lock. (2) 3.0 x 6.8 9-lite, fiberglass entry door. 4” GRK structural screws for headers. Color matched screws for roofing and siding.
