28×50 Gambrel Garage Kit

Kit Description:

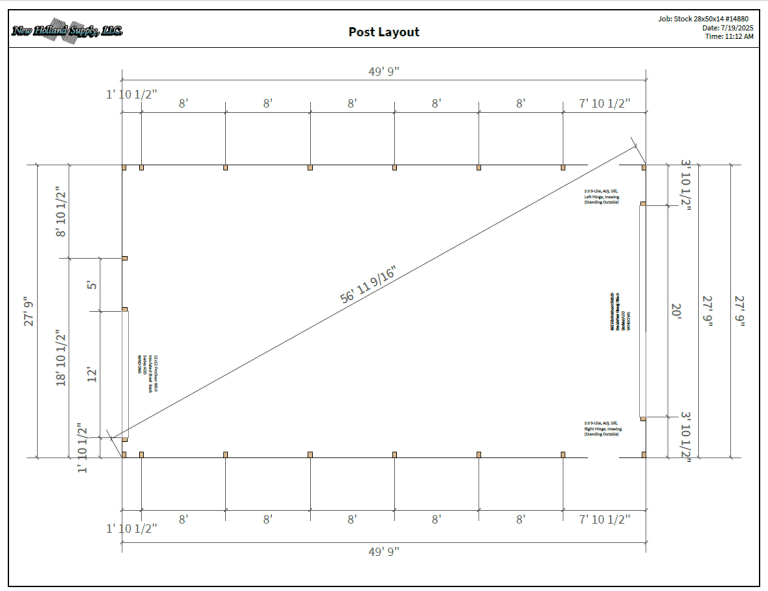

Material for 28’x50’x14’ pole barn: 3-ply 2×6 glu-lam posts 8’ on/center. (1) 5×16 precast concrete footer block & (1) 80 lb bag sakrete per post. 2-ply 2×12 SYP truss bearers. Pre-fabricated gambrel, attic trusses with 16/12 – 4/12 roof pitch, 35-5-5 loading, 24″ on center with 16’x8’ attic room; 3/4” OSB flooring, 7/16” OSB 4’ high on sidewalls, 36” split stairs with landing 6’ high, (3) 2×12 stringers, 2×12 treads, 1×8 risers, 2×4 railings. 12” overhangs on eaves and gables with vented aluminum soffit and painted steel fascia. 2×8 treated skirtboard. 2×4 purlins & girts 24” on/center. Everlast 28 Ga. LYNX Series metal roof & siding. 4′ wainscot on all sides. Therma Guard R-9 vapor barrier on roof. Vented closures under ridge cap, foam closure strips at eaves. Painted steel ridge cap, rake & corner trim, base angle, gutter apron, overhead door trim, double angle at gables. (1) 20’x12’ & (1) 12’x12’ ProDoor 6410 overhead doors, R-10 insulated, metall back, raised panel wood grain, white, torsion springs, standard track, weather stripping, steel angle, slide lock, one row windows. (1) 3.0 x 6.8 9-lite, fiberglass entry door with black, keyed entry door knob. (1) 4’x7’ Aluminum, dutch, loft door. 4” GRK structural screws for headers, color matched screws for roofing and siding.
