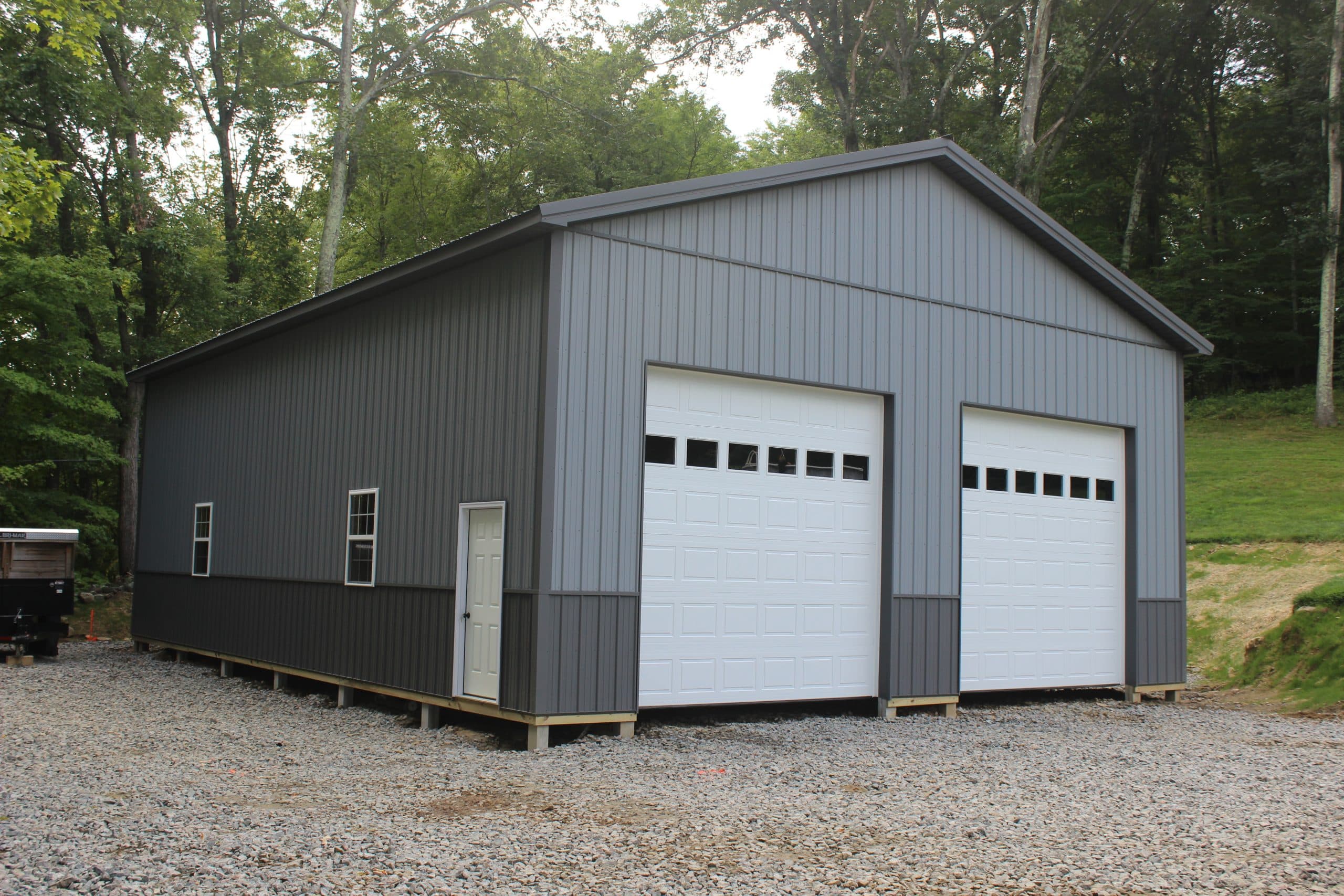

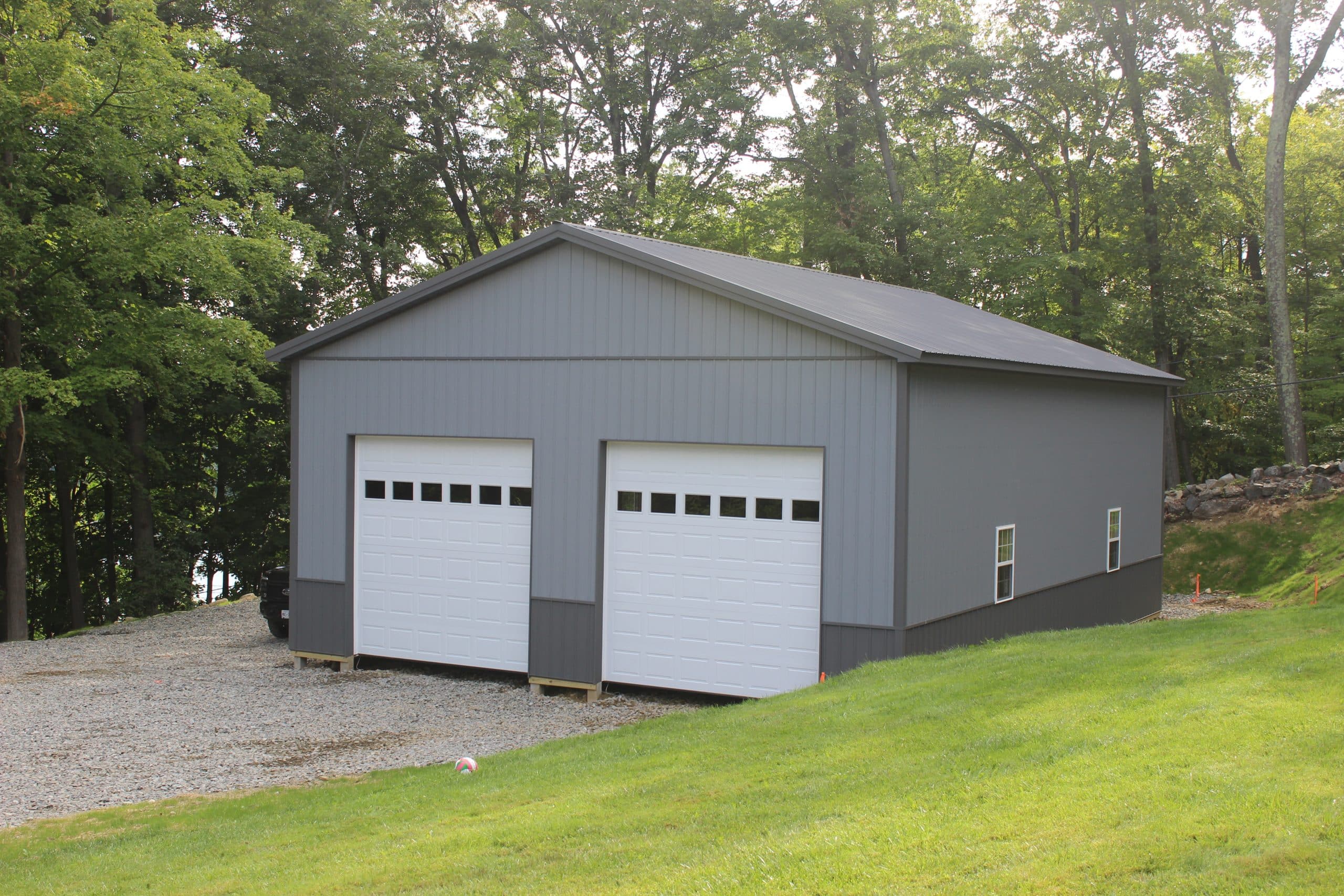

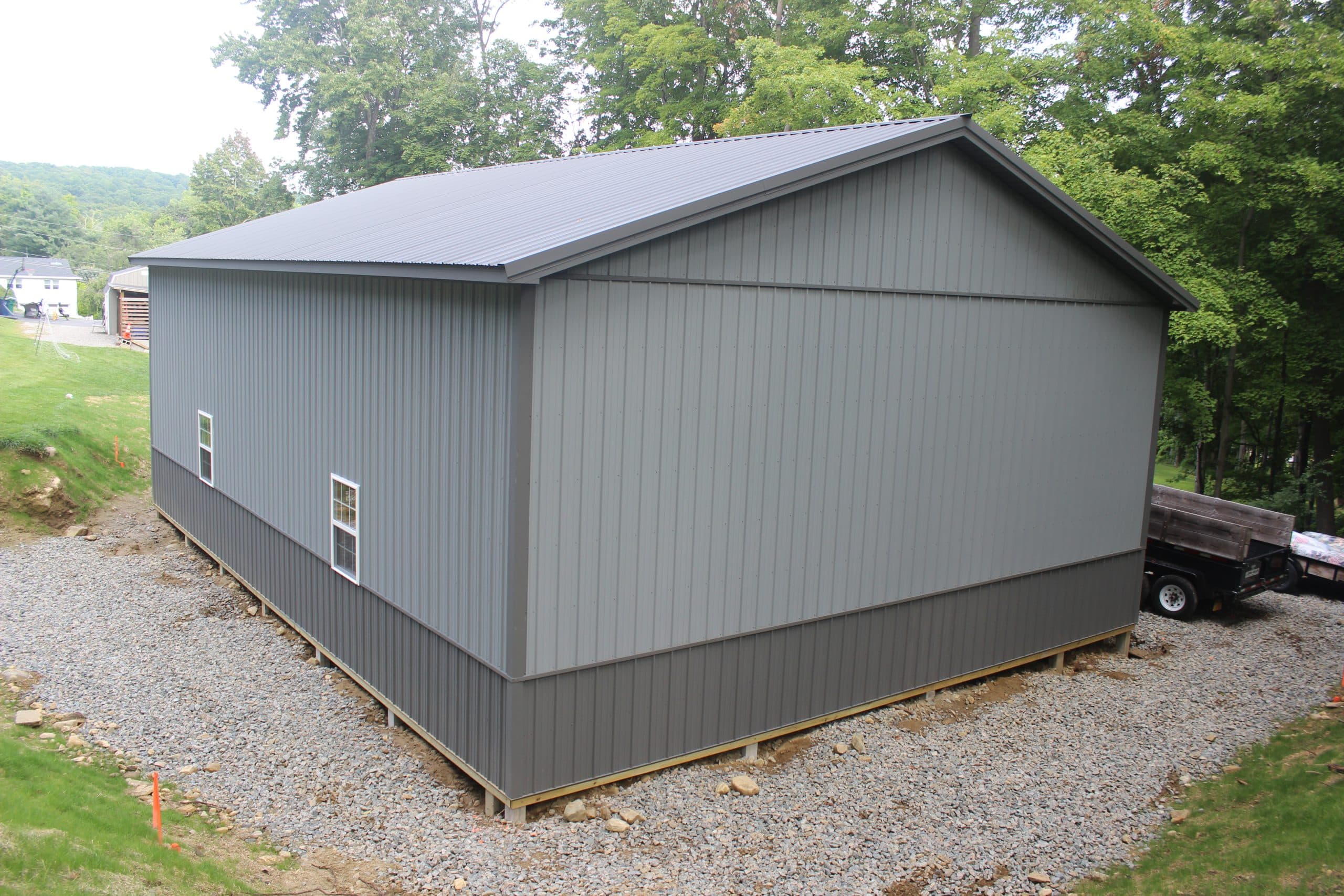

36x50x14 Pole barn, Carmel NY

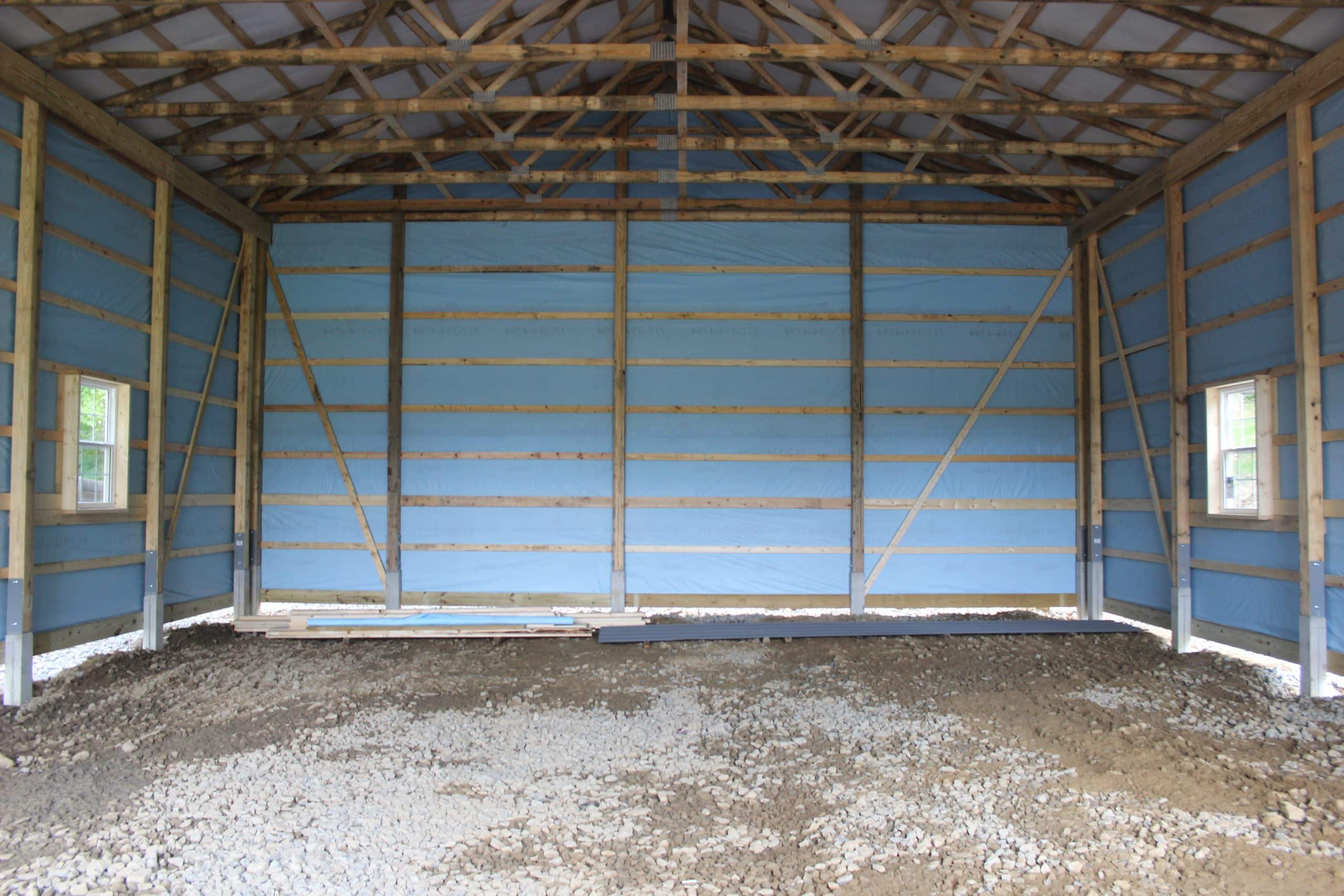

• Prefabricated trusses, 4/12 pitch, spaced 4' on center • Double 2x12 MSR truss bearers • 3-ply 2x6 glu-lam posts, spaced per drawings • (1) 5”x16” concrete foundation block and (1) 80 lb bag of Sakrete per post • 2x4 truss bracing with 2x6 truss blocks • 2x4 roof purlins and wall girts, spaced 2' on center • Treated 2x8 skirtboard around perimeter of building • Everlast Omni Series 28 ga. steel roof and wall panels, screw attached • 12” overhangs • Vented ridge • Steel fascia with aluminum vented soffit • R-9 vapor barrier under roof panels • Synthetic housewrap under wall panels • (1) 3068 6-panel preprimed fiberglass hinged entry door with lockset. Hinged right from outside • (2) 10'Wx8'H R-10 steel-backed overhead doors (openers not included) • (4) 3648 vinyl single-hung windows with grids between glass
