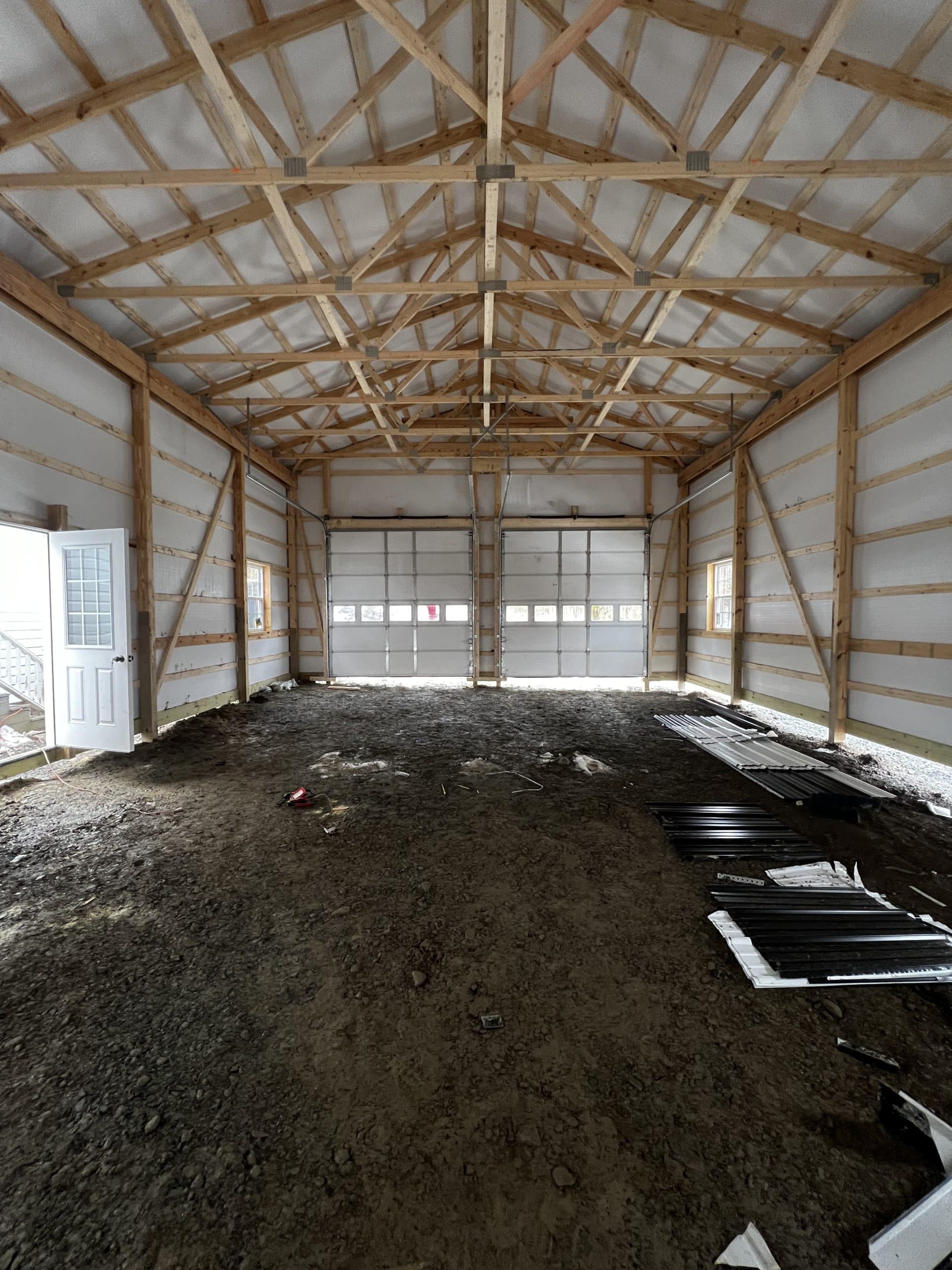

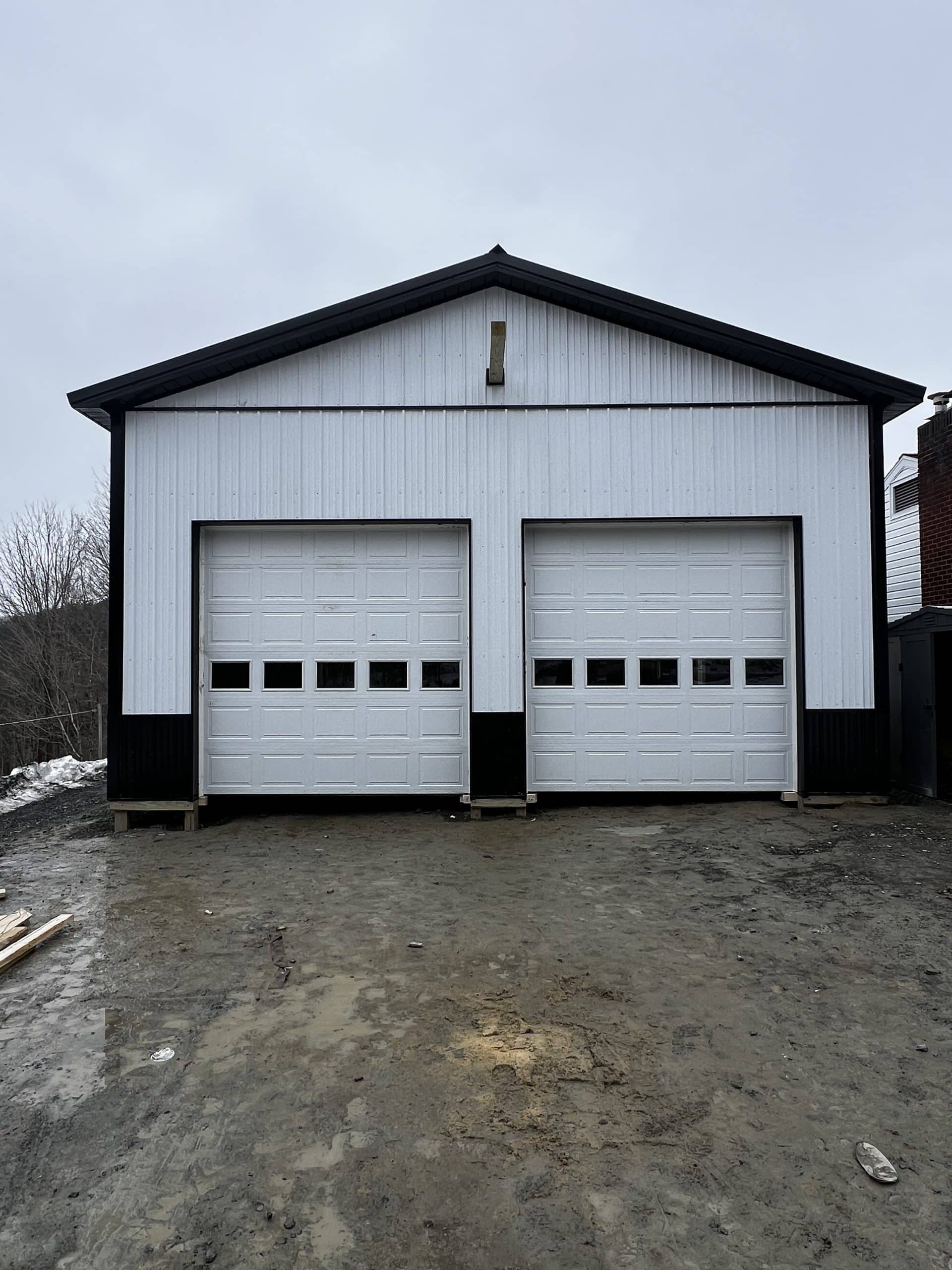

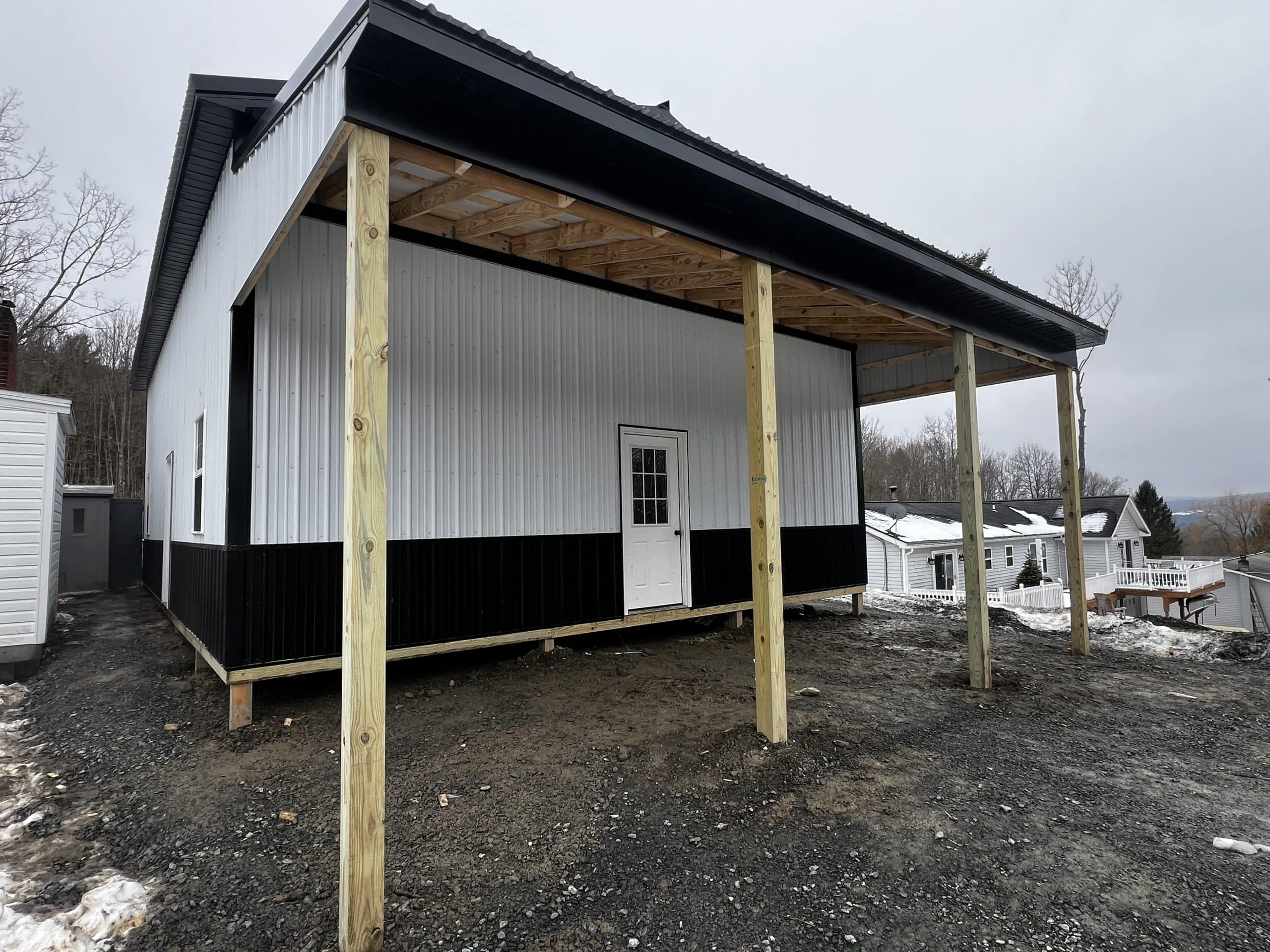

28x40x14 Pole Barn, Kirkwood NY

• Prefabricated trusses, 4/12 pitch, spaced 4' on center • Double 2x12 MSR truss bearers (triple above overhead door) • 3-ply 2x6 glu-lam posts, spaced per drawings • (1) 5”x16” concrete foundation block and (1) 80 lb bag of Sakrete per post • 2x4 truss bracing with 2x6 truss blocks • 2x4 roof purlins and wall girts, spaced 2' on center • Treated 2x8 skirtboard around perimeter of building • Everlast Omni Series 28 ga. steel roof and wall panels, screw attached, with wainscot • 12” overhangs • Vented ridge • Steel fascia with aluminum vented soffit • R-9 vapor barrier under roof and wall panels • (2) 3068 6-panel preprimed fiberglass hinged entry doors with locksets • (2) 10'Wx10'H R-6.8 insulated vinyl-backed overhead doors • (2) 3648 vinyl single-hung windows
